Timing Belt: Specifications (page 4 of 9)
- Make
- Suzuki
- Model
- Esteem GLX
- Engine
- L4-1.6L
- Year
- 1997
- Section
- Timing Belt
MaintenanceSpecifications · page 4 of 9
7. Remove water pump pulley and drive belt.
8. Remove crankshaft pulley by removing 5 pulley bolts.
9. Release harness clamps.
10. Remove timing belt outside cover.

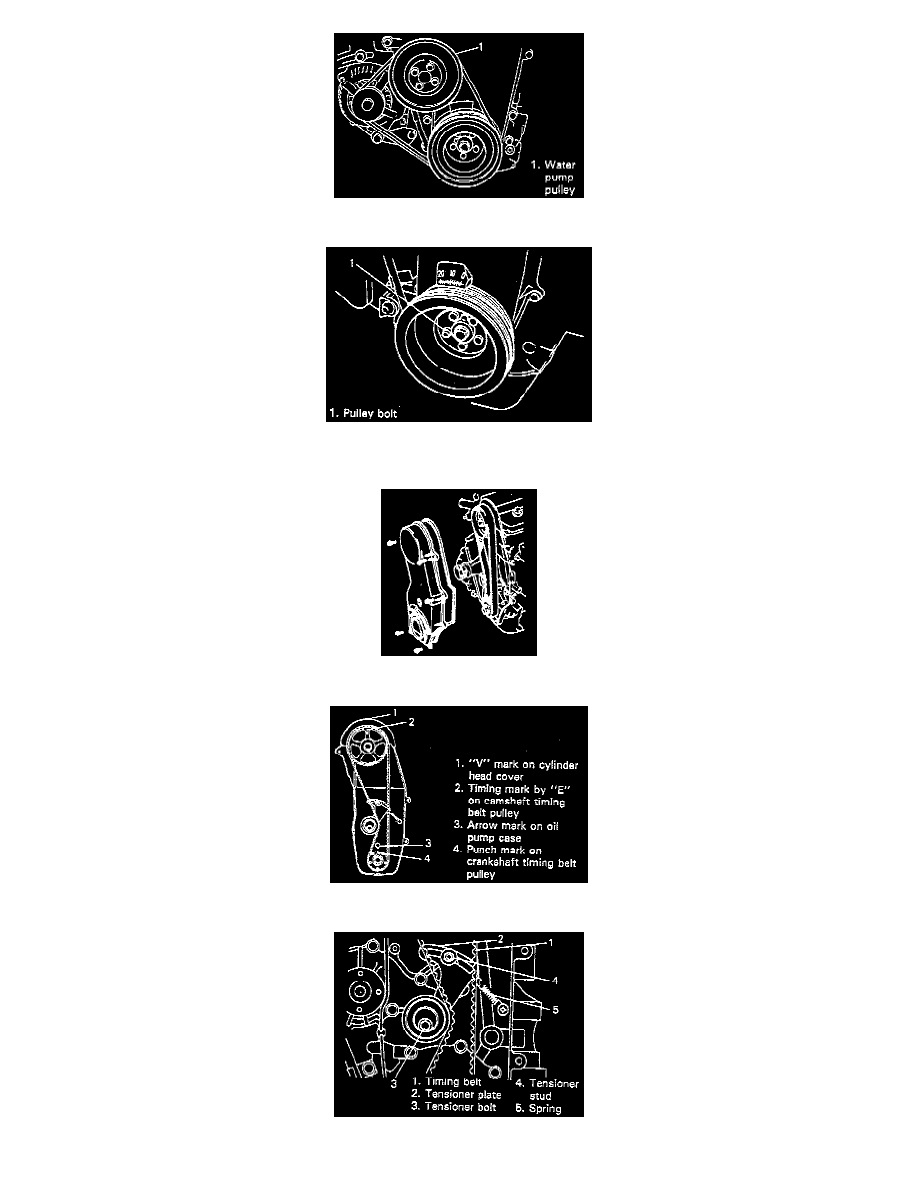

11. For installation of timing belt, align 4 timing marks as shown in image by turning crankshaft.
12. Remove timing belt tensioner, tensioner plate, tensioner spring and timing belt.
