CAUTION:
-

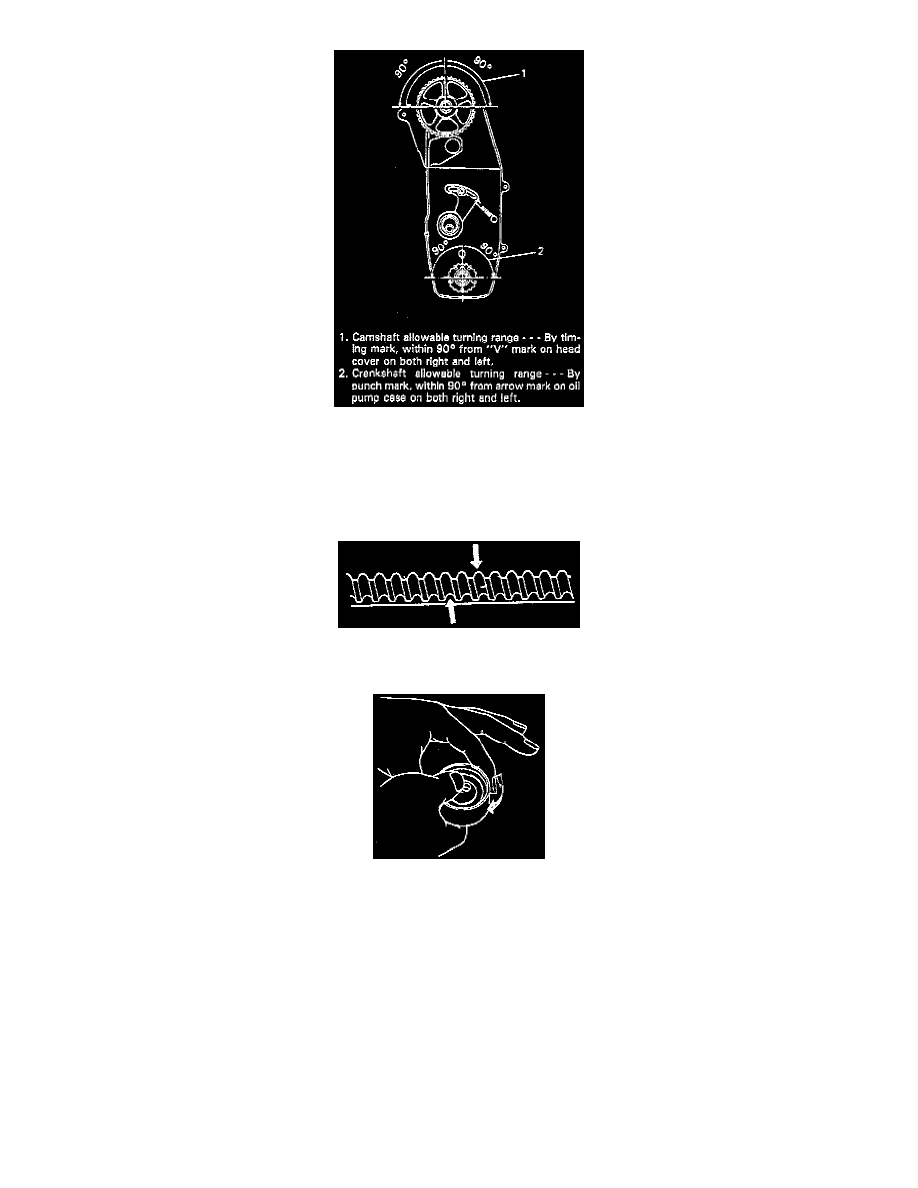

After timing belt is removed, never turn camshaft and crankshaft independently more than such a extent as shown in image. If turned,
interference may occur among piston and valves, and parts related to piston and valves may be damaged.
-
Never bend timing belt.
INSPECTION
-
Inspect timing belt for wear or crack.
Replace it as necessary.
-
Inspect tensioner for smooth rotation.
