Esteem GLX L4-1.6L (1997)
(a): 11 Nm (96 inch lbs.)
(b): 25 Nm (18.0 ft. lbs.)

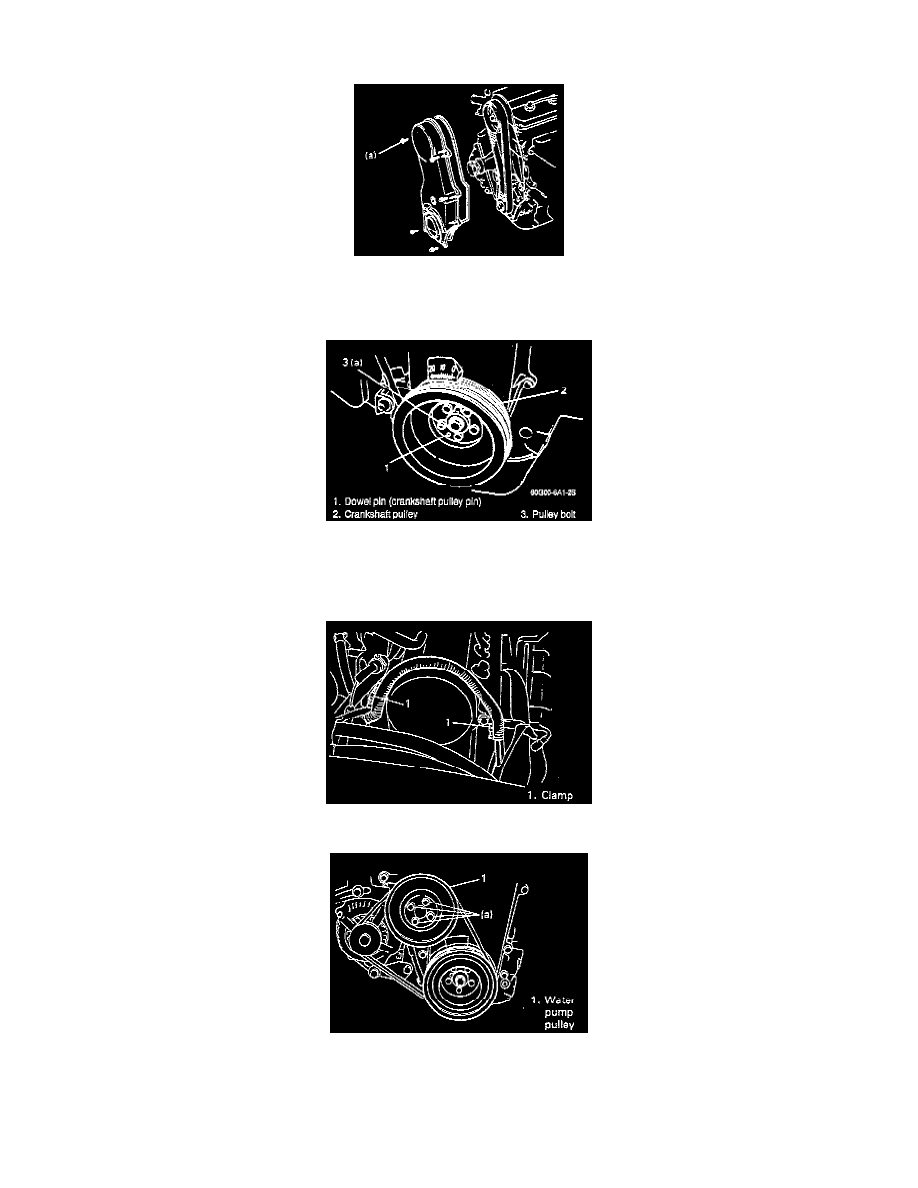

7. Install timing belt outside cover. Before installing, make sure that seal is between water pump and oil pump case.
Tightening Torque (a): 11 Nm (96 inch lbs.)
8. Install crankshaft pulley.
Fit pin hole of pulley to dowel pin on crank timing belt pulley, and tighten pulley bolts to specified torque.
Tightening Torque (a): 16 Nm (11.5 ft. lbs.)
9. Clamp harness securely.
10. Install water pump pulley and drive belt.
Tightening Torque (a): 11 Nm (96 inch lbs.)
