Timing Belt: Specifications (page 6 of 9)
- Make
- Suzuki
- Model
- Esteem GLX
- Engine
- L4-1.6L
- Year
- 1997
- Section
- Timing Belt
MaintenanceSpecifications · page 6 of 9
INSTALLATION

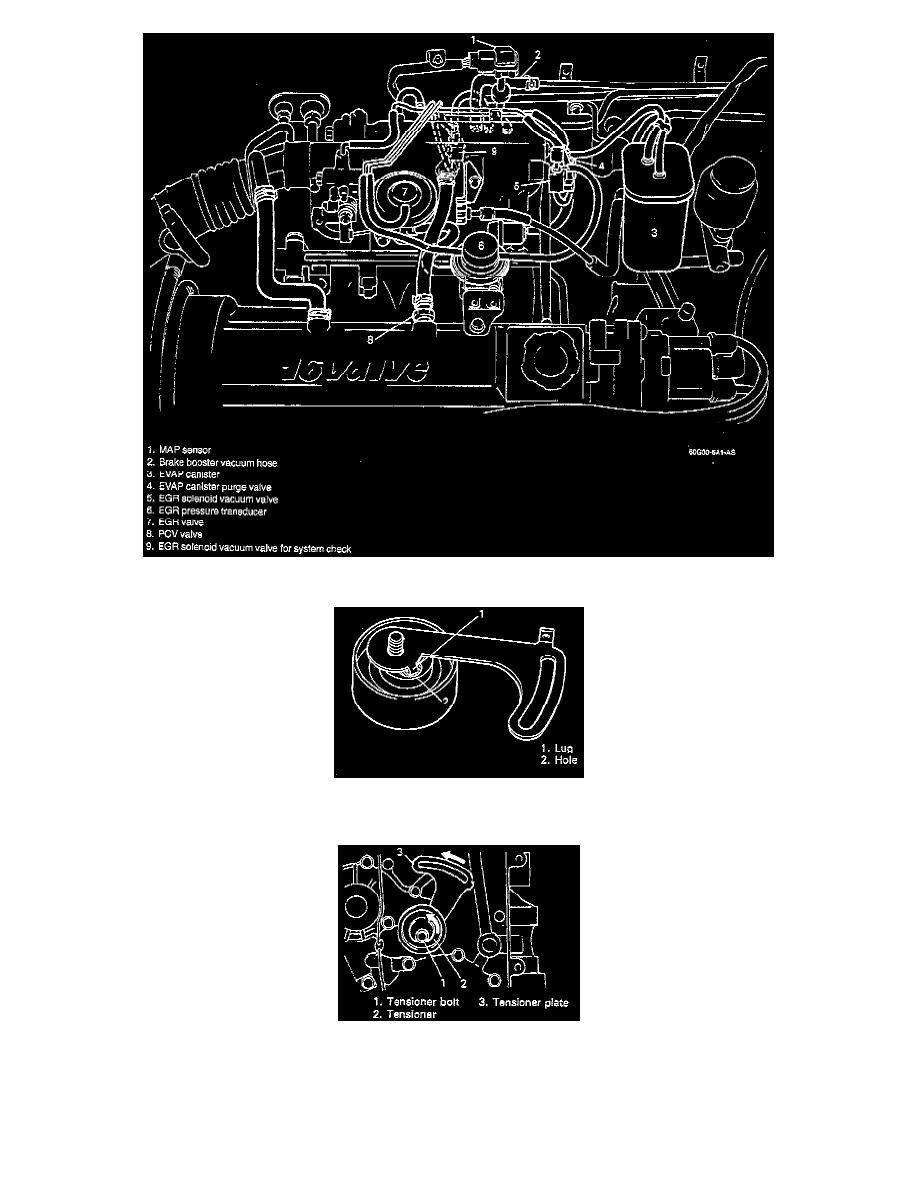

1. Install tensioner plate to tensioner.
Insert lug of tensioner plate into hole in tensioner.
2. Install tensioner and tensioner plate:
Do not tighten tensioner bolt with wrench yet. Hand tighten only at this time.
Check to ensure that plate movement in arrow direction as shown in image causes tensioner to move in the same direction. If no associated
movement between plate and tensioner occurs, remove tensioner and plate again and reinsert plate lug into tensioner hole.
