Esteem GLX Wagon Plus L4-1.6L (1998)
Vehicle Lifting: Service Precautions
WARNING:
-
Before applying hoist to underbody, always take vehicle balance throughout service into consideration.
Vehicle balance on hoist may change depending on what part to be removed.
-
Before lifting up the vehicle, check to be sure that end of hoist arm is not in contact with brake pipe, fuel pipe, bracket or any other part.
-

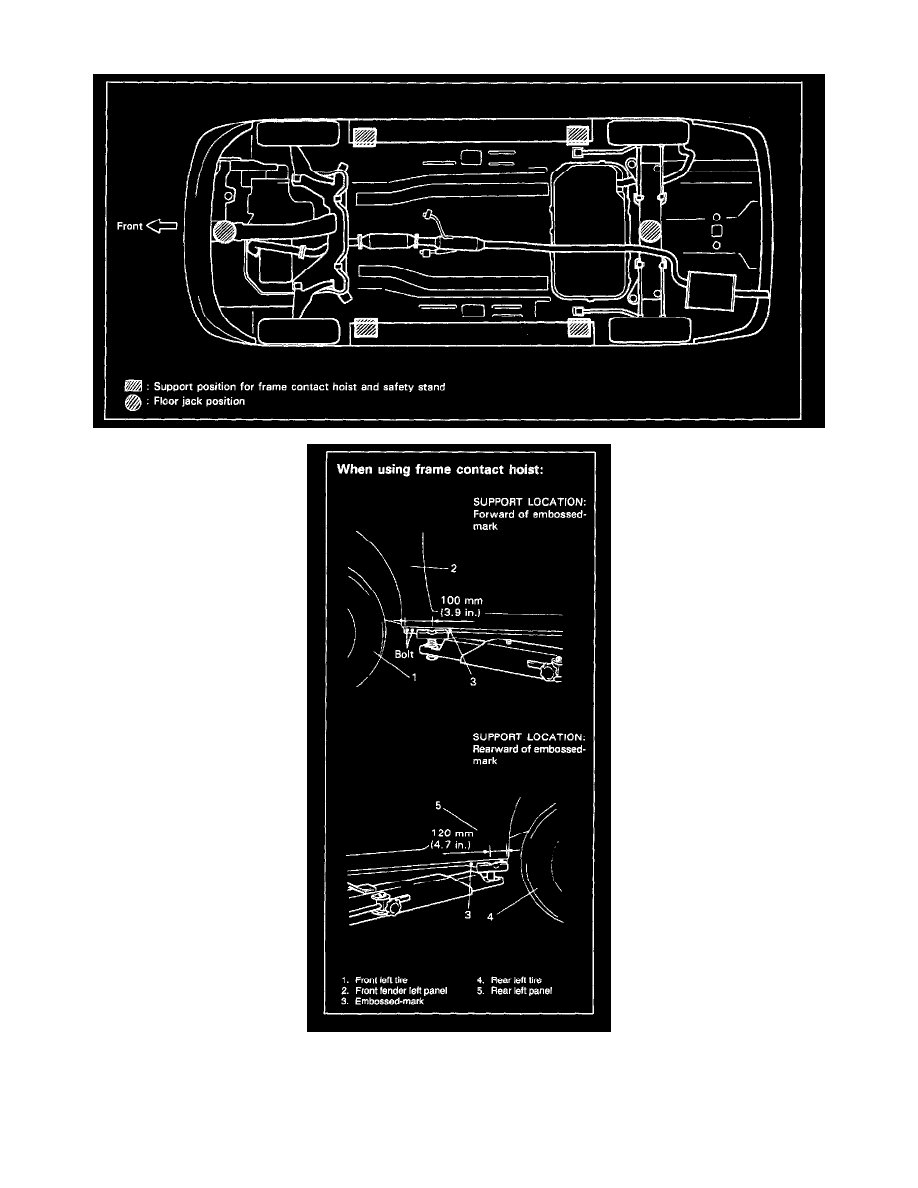

When using frame contact hoist, apply hoist as shown in figure (right and left at the same position). Lift up the vehicle till 4 tires are a
little off the ground and make sure that the vehicle will not fall off by trying to move vehicle body in both ways. Work can be started only
