Grand Vitara 2WD V6-2.7L (2006)

  • Maintenance
  • Alignment
  • System Information
  • Specifications

Page 1
background image

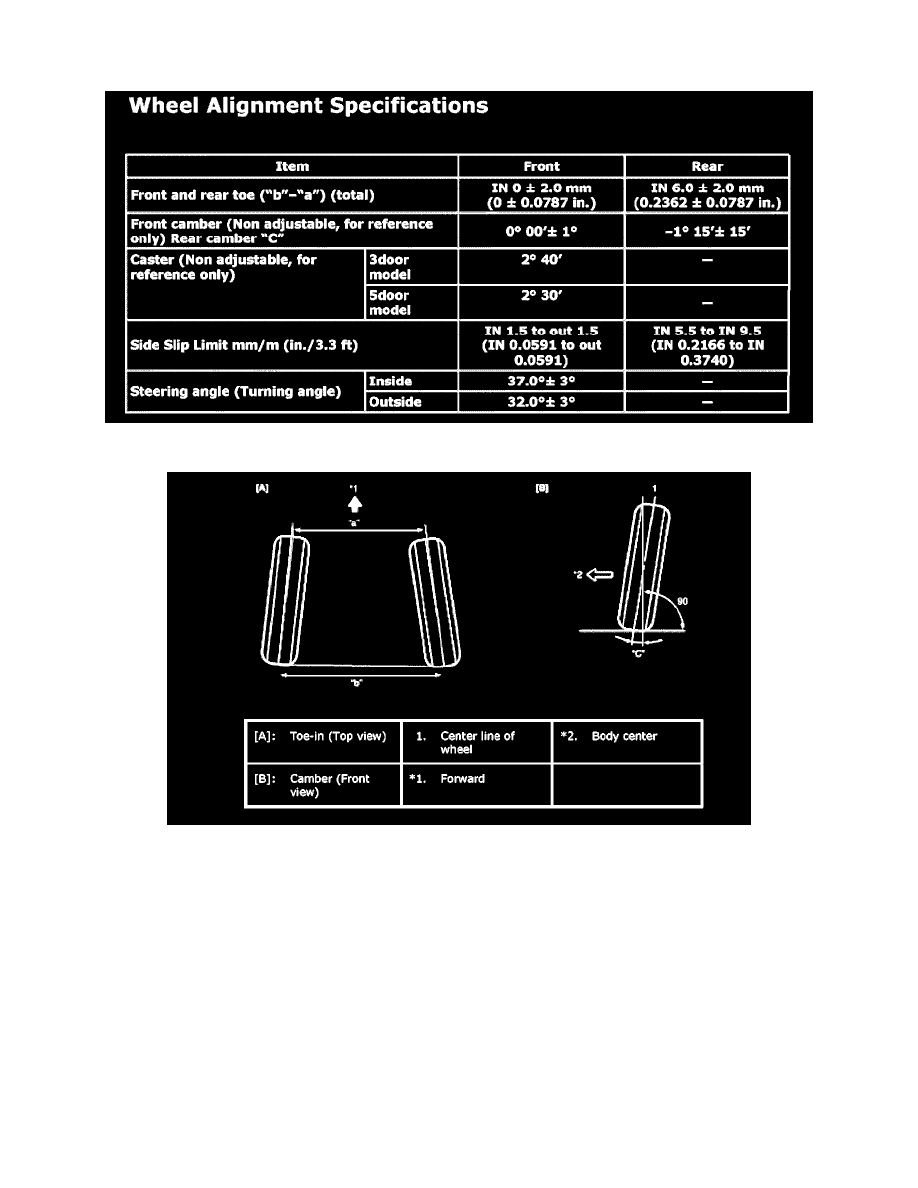

Alignment: Specifications

Wheel alignment specifications

Wheel alignment specifications

NOTE:  Toe value in the specifications table was measured by using a toe-in gauge.
