Grand Vitara 4WD L4-2.4L (2009)
Vehicle Lifting: Service and Repair

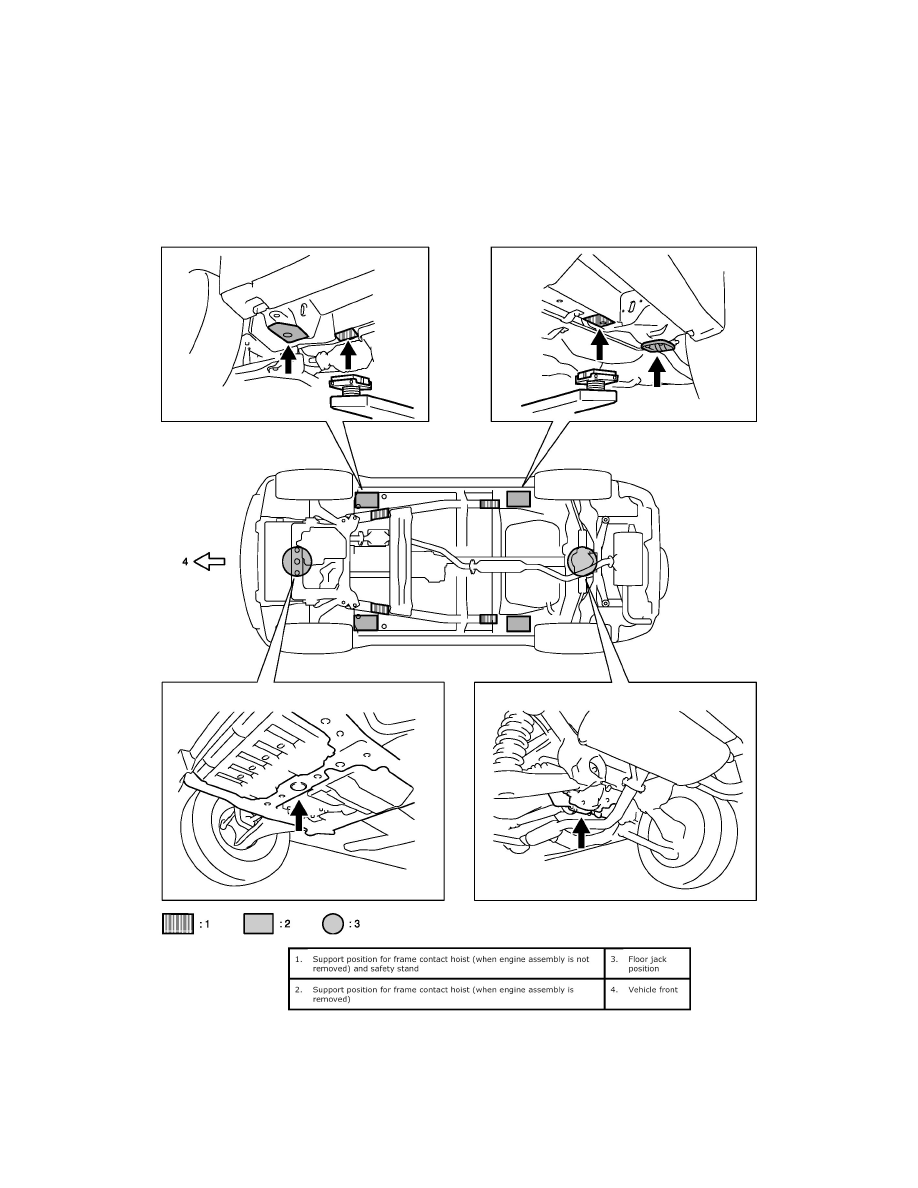

Vehicle Lifting Points
WARNING:
-
Before applying hoist to underbody, always take vehicle balance throughout service into consideration. Vehicle balance on hoist may
change depending of what part to be removed.
-
Before lifting up the vehicle, check to be sure that end of hoist arm is not in contact with brake pipe, fuel pipe, bracket or any other part.
-
When using frame contact hoist, apply hoist as shown (right and left at the same position). Lift up the vehicle till 4 tires are a little off the
ground and make sure that the vehicle will not fall off by trying to move vehicle body in both ways. Work can be started only after this
confirmation.
-
Make absolutely sure to lock hoist after vehicle is hoisted up.
When using floor jack
WARNING: If the vehicle to be jacked up only at the front or rear end, be sure to block the wheels on ground in order to ensure safety.
After the vehicle is jacked up, be sure to support it on stands. It is extremely dangerous to do any work on the vehicle raised on jack alone.
CAUTION: Never apply jack against engine under cover, suspension parts (i.e., stabilizer, etc.) or vehicle floor, or it may get damaged.
