Swift GA L4-1298cc 1.3L SOHC MFI (2001)
Brake Drum: Service and Repair
For Vehicles Equipped With Wheel Hub

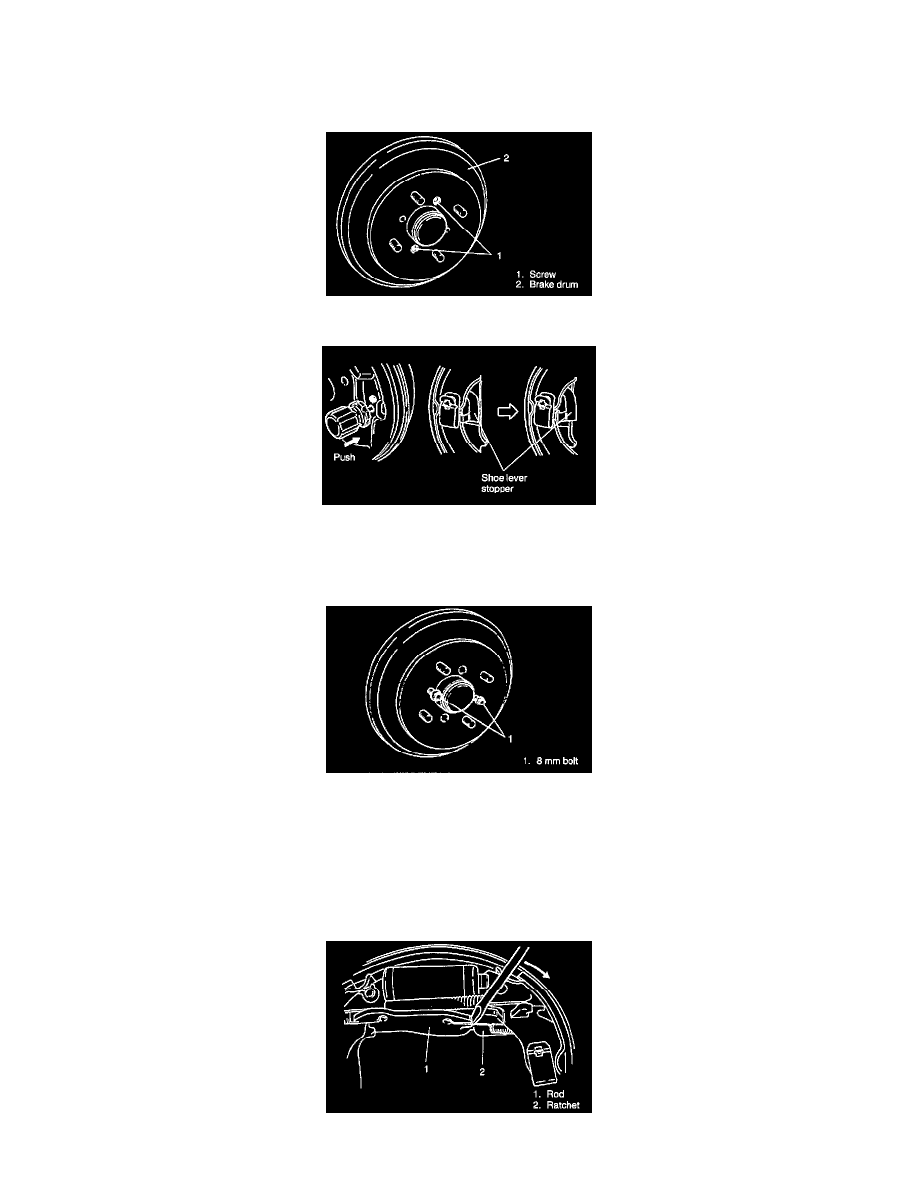

REMOVAL
1. Hoist vehicle and remove wheel.
2. Remove brake drum screws (2 pcs.).
3. Release parking brake lever.
4. Remove parking brake lever cover and loosen parking brake cable locking nut.
5. Remove back plate plug attached to the back side of brake back plate so as to increase clearance between brake shoe and brake drum.
Insert a screwdriver into plug hole till its tip contacts shoe lever stopper and push screwdriver in the arrow direction.
6. Pull brake drum off by using 8 mm bolts (2 pcs.)
INSTALLATION
WARNING: All brake fasteners are important attaching parts in that they could affect the performance of vital parts and systems, and/or
could result in major repair expense. They must be replaced with ones of same part number or with an equivalent part if replacement
becomes necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during
reassembly to assure proper retention of all parts. There is to be no welding as it may result in extensive damage and weakening of the metal.
1. Before installing brake drum, to maximize brake shoe-to-drum clearance, put screwdriver between rod and ratchet and push down ratchet.
