Suzuki XL-7 2WD V6-2.7L (2004)17 · Lighting and Horns
17 · Electrical

Clearance Lamp: Diagrams

Make
Suzuki
Model
XL-7 2WD
Engine
V6-2.7L
Year
2004
Section
Clearance Lamp › Diagrams
Lighting and HornsDiagrams · page 1 of 3
background image

Clearance Lamp: Diagrams

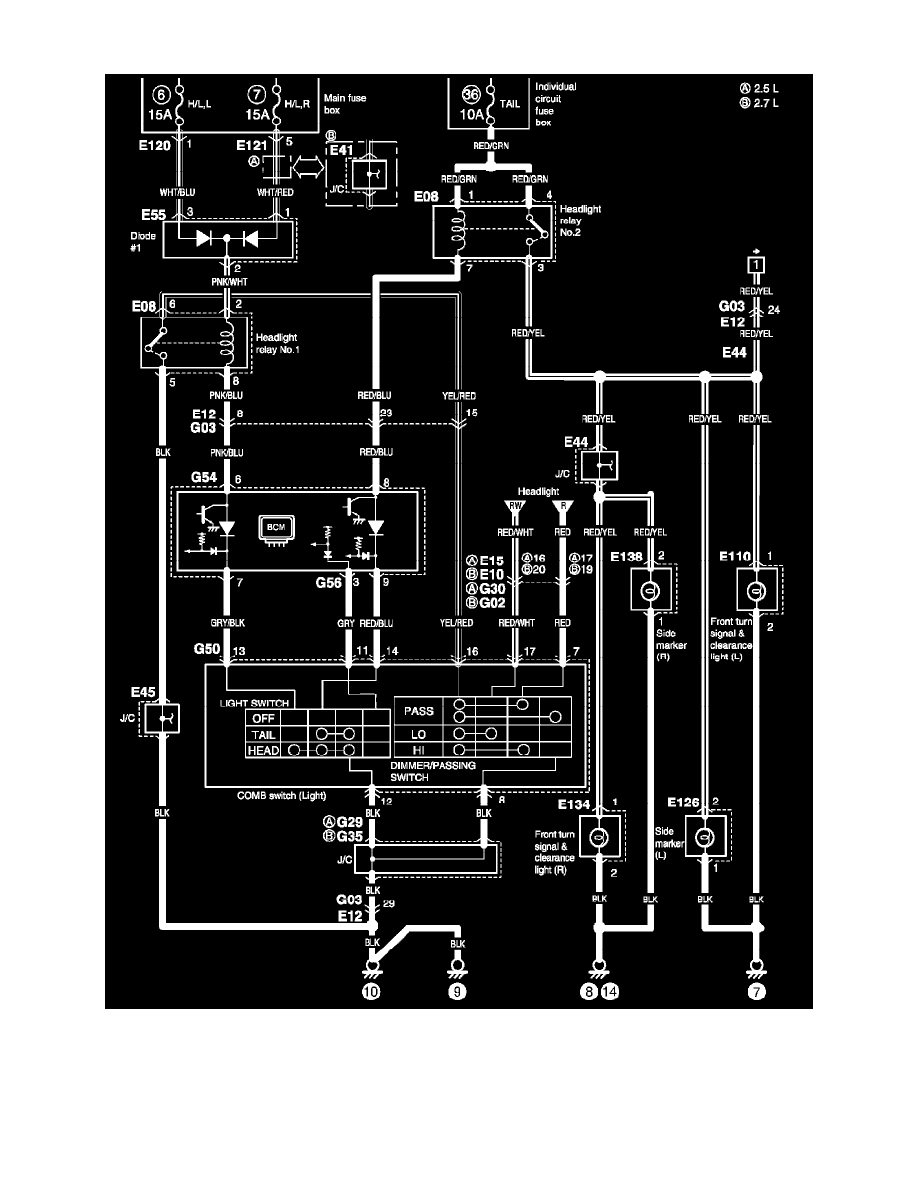

Clearance, Tail And Licence Plate Light Circuit Diagram 1
