Wheels: Specifications

Wheel Fastener

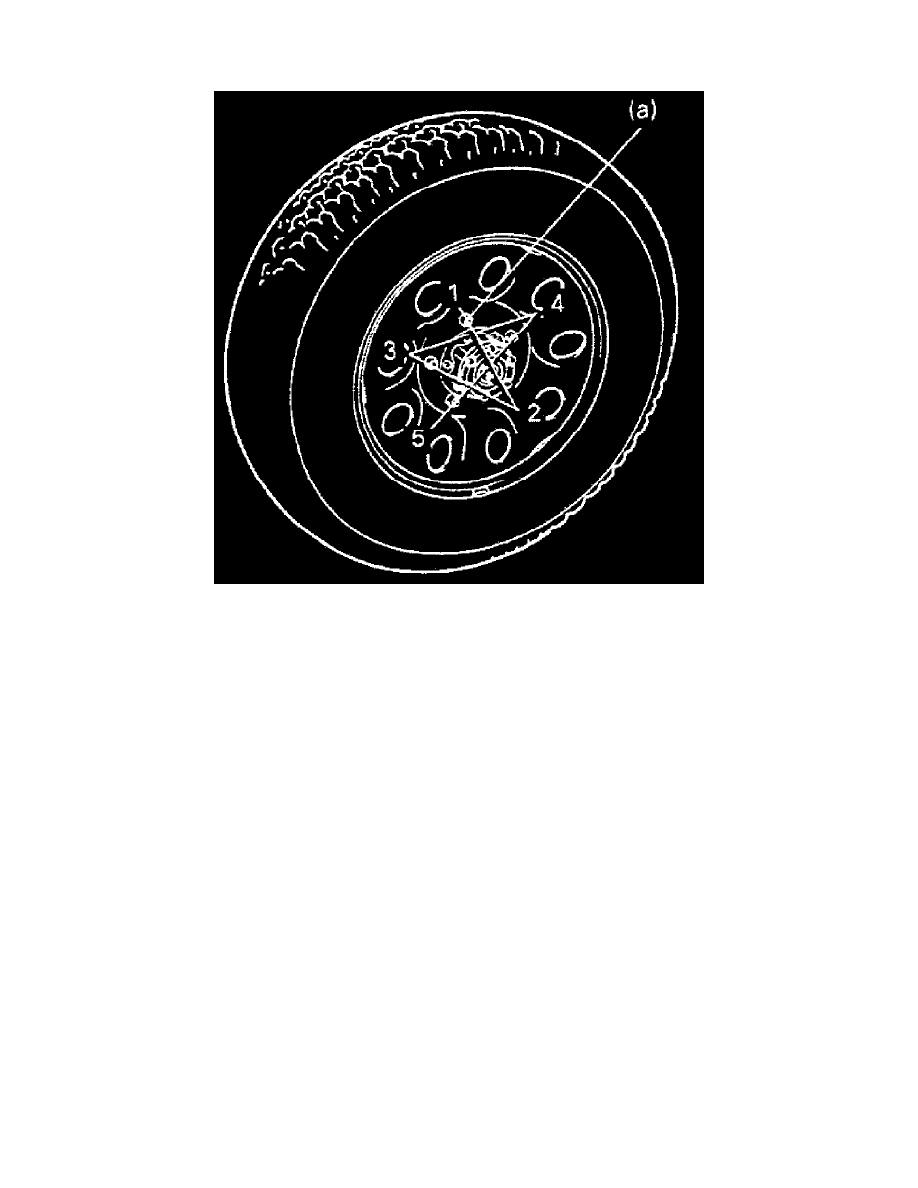

Wheel nuts must be tightened in sequence and to proper torque to avoid bending wheel or brake drum or disc as shown in the figure.
Tightening torque
Wheel nut a ....................................................................................................................................................................  100 Nm (10.0 kg-m, 72.5 ft. lbs.)
