XL-7 4WD V6-3.6L (2008)
Seat Heater: Diagrams

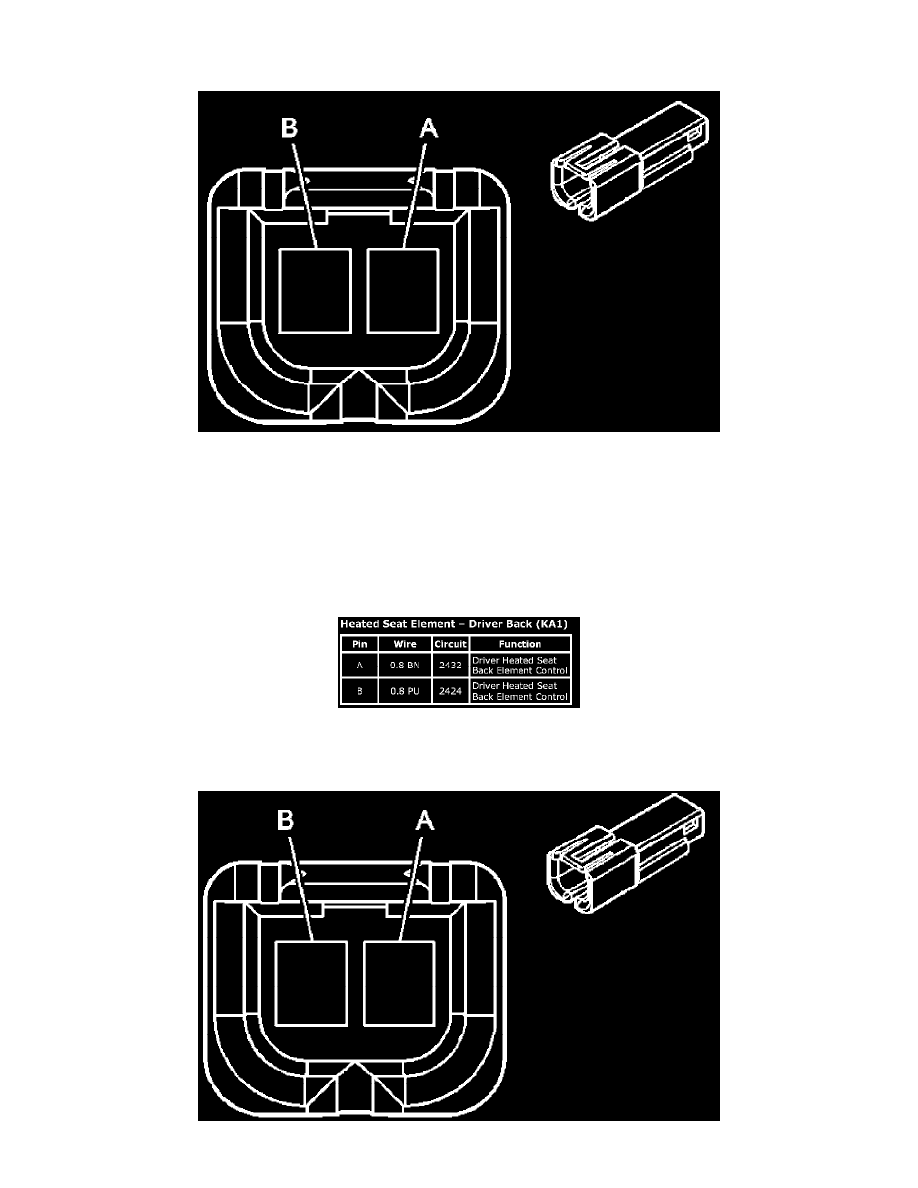

Heated Seat Element - Driver Back (KA1)
Connector Part Information
OEM: 12059254
Service: 12126020
Description: 2-Way M Metri-Pack 150 Series (GN)
Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
Heated Seat Element - Driver Back (KA1)
Heated Seat Element - Front Passenger Back (KA1)
