Brake Lamp: Diagrams

Make

Suzuki

Model

XL-7 4WD

Engine

V6-3.6L

Year

2008

Section

Brake Lamp › Diagrams

Lighting and HornsDiagrams · page 1 of 2

Brake Lamp: Diagrams

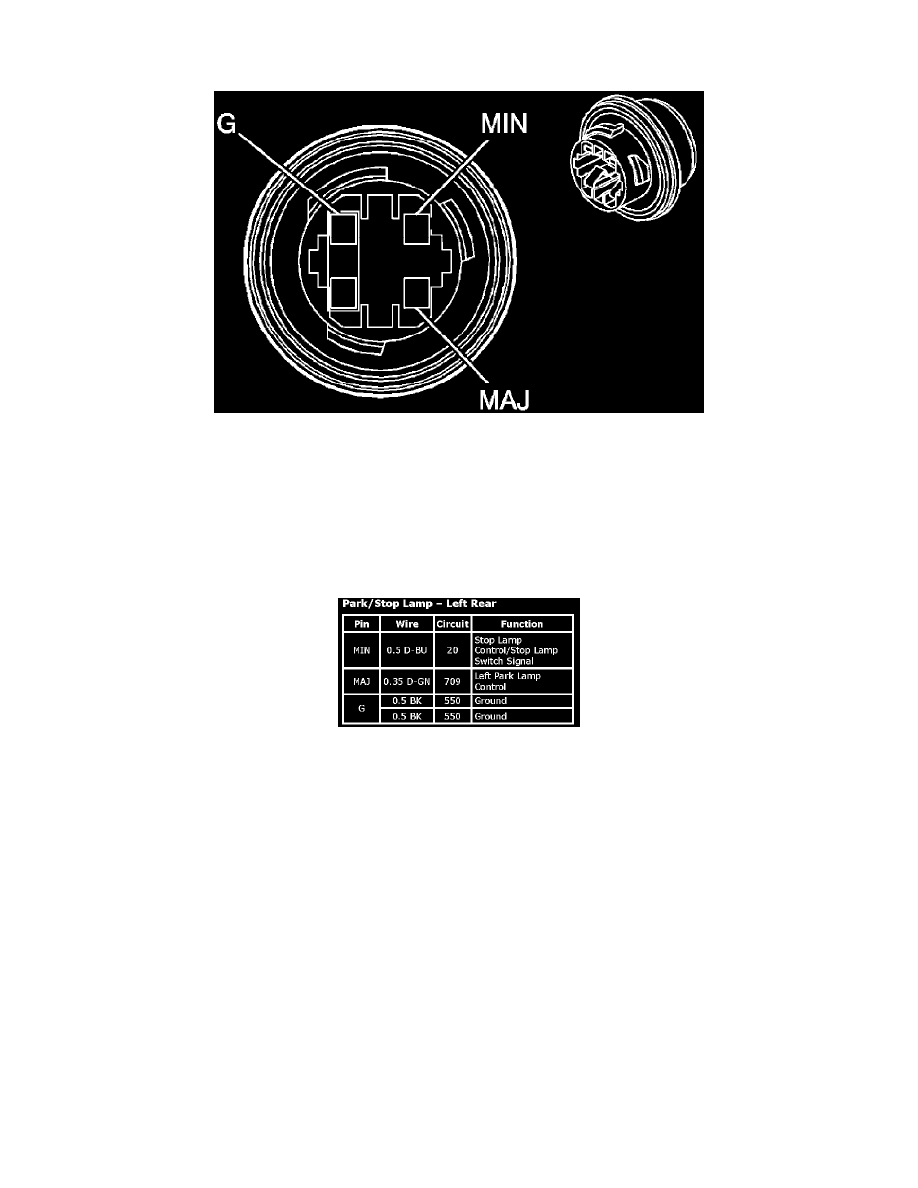

Park/Stop Lamp - Left Rear

Connector Part Information

OEM: 1999370
Service: See Catalog
Description: 3-Way F Lamp Socket Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Park/Stop Lamp - Left Rear

Park/Stop Lamp - Right Rear
