Ignition Coil: Diagrams
- Make
- Suzuki
- Model
- XL-7 4WD
- Engine
- V6-3.6L
- Year
- 2008
- Section
- Ignition System › Ignition Coil › Diagrams
Ignition Coil: Diagrams

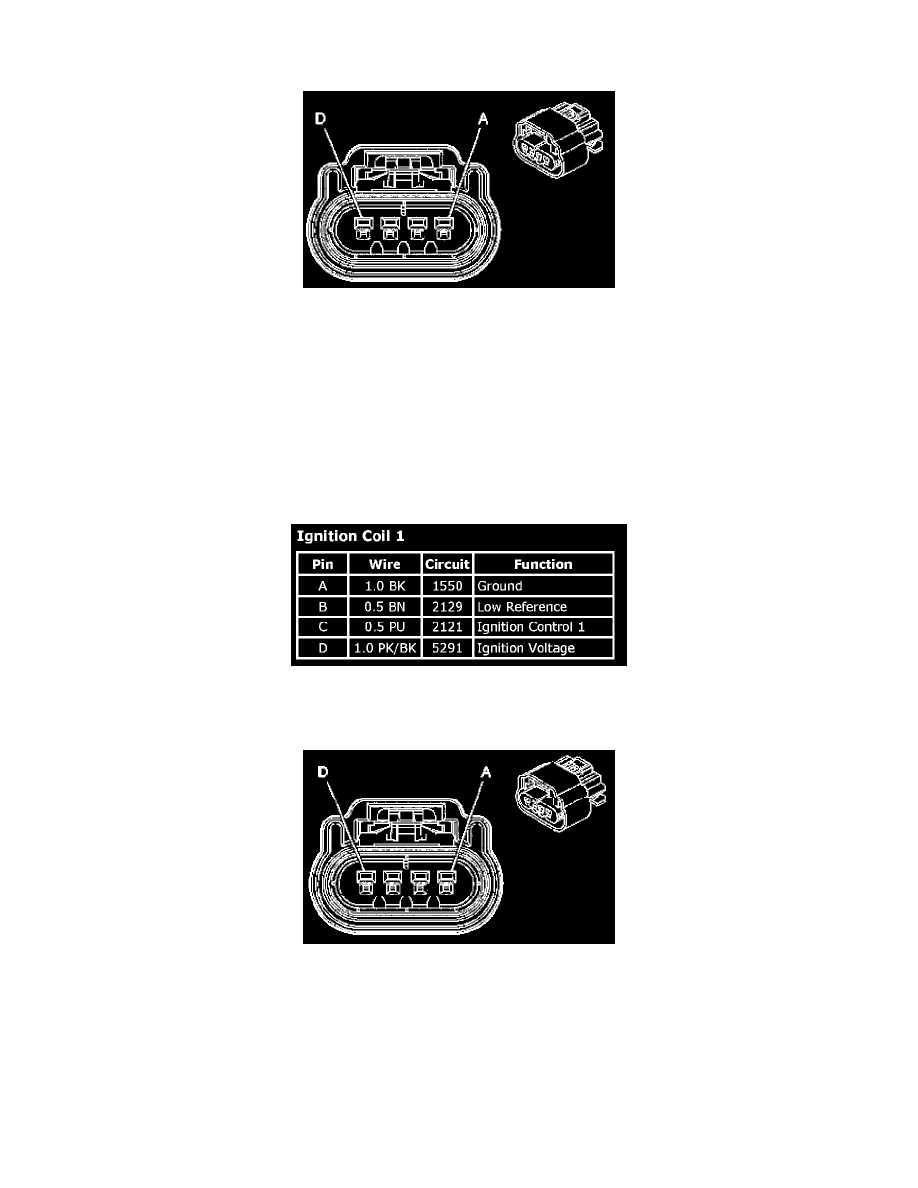

Ignition Coil 1
Ignition Coil 1
Connector Part Information
OEM: 15466325
Service: 88988737
Description: 4-Way F Global Terminal/150 (BK)
Terminal Part Information
Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A, D - 2/A
Core/Insulation Crimp: Pins B, C - E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Ignition Coil 1
Ignition Coil 2
Ignition Coil 2
Connector Part Information
OEM: 15466325
Service: 88988737
Description: 4-Way F Global Terminal/150 (BK)
Terminal Part Information
Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins A, D - 2/A
Core/Insulation Crimp: Pins B, C - E/A
