Rear Defogger: Diagrams

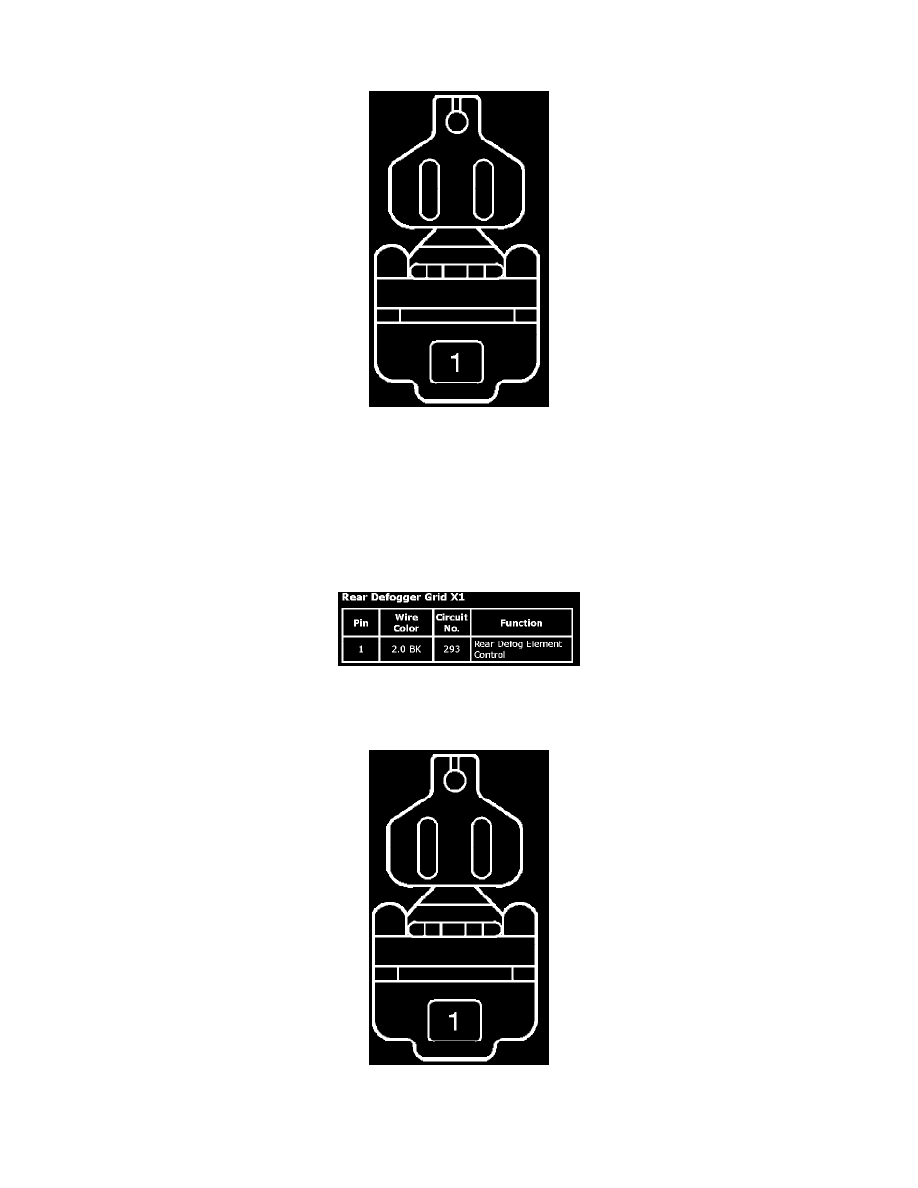

Rear Defogger Grid X1
Connector Part Information
OEM: 7123-5014-30
Service: 88988465
Description: 1-Way F (BK)
Terminal Part Information
Terminal/Tray: 7116-2951-02/27
Core/Insulation Crimp: C/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)
Rear Defogger Grid X1
Rear Defogger Grid X2
Connector Part Information
OEM: 7123-5014-30
Service: 88988465
Description: 1-Way F (BK)
