4 Runner 2WD L4-2.7L (2TR-FE) (2010)
/Page-2271001.png)
Cellular Phone Microphone: Service and Repair
Microphone Amplifier

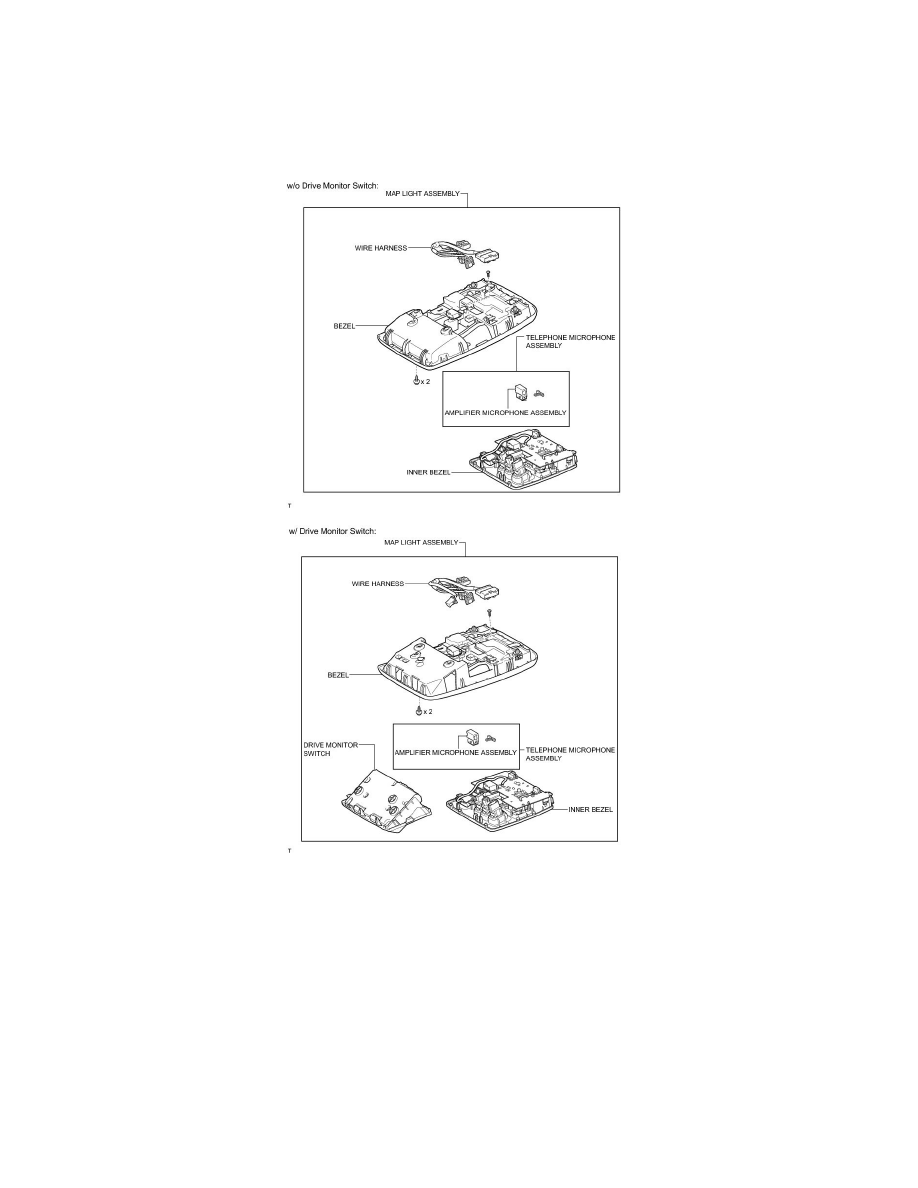

Components
AUDIO / VIDEO: MICROPHONE AMPLIFIER: COMPONENTS
Removal
AUDIO / VIDEO: MICROPHONE AMPLIFIER: REMOVAL
1. REMOVE DRIVE MONITOR SWITCH See: Lighting and Horns/Dome Lamp/Service and Repair/Room Light (for Front)/Removal
2. REMOVE MAP LIGHT ASSEMBLY See: Lighting and Horns/Dome Lamp/Service and Repair/Room Light (for Front)/Removal
3. REMOVE TELEPHONE MICROPHONE ASSEMBLY
(a) Disconnect the 6 connectors.
