4 Runner 2WD V6-4.0L (1GR-FE) (2006)
/Page-1460001.png)
Center Mounted Brake Lamp: Service and Repair

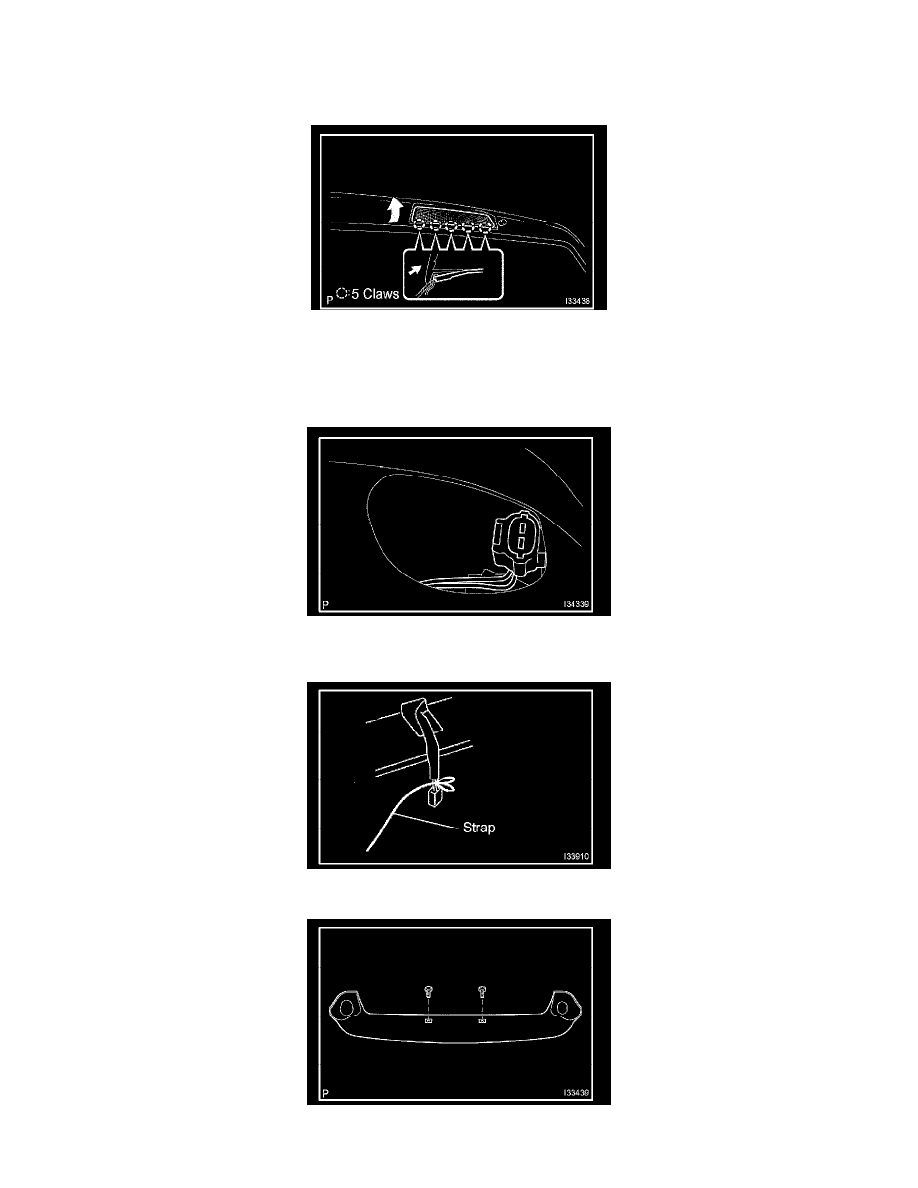

CENTER STOP LIGHT ASSEMBLY
REPLACEMENT
1. REMOVE CENTER STOP LIGHT ASSEMBLY (W/O REAR SPOILER)
a. Release the 5 fitting claws as shown in the illustration.
b. Disconnect the connector and remove the center stop light assembly.
2. REMOVE REAR SPOILER SUB ASSEMBLY (W/ REAR SPOILER)
3. REMOVE CENTER STOP LIGHT ASSEMBLY (W/ REAR SPOILER)
a. Disconnect the connector.
b. Install the strap on the connector of center stop light assembly.
c. Remove the 2 screws.
