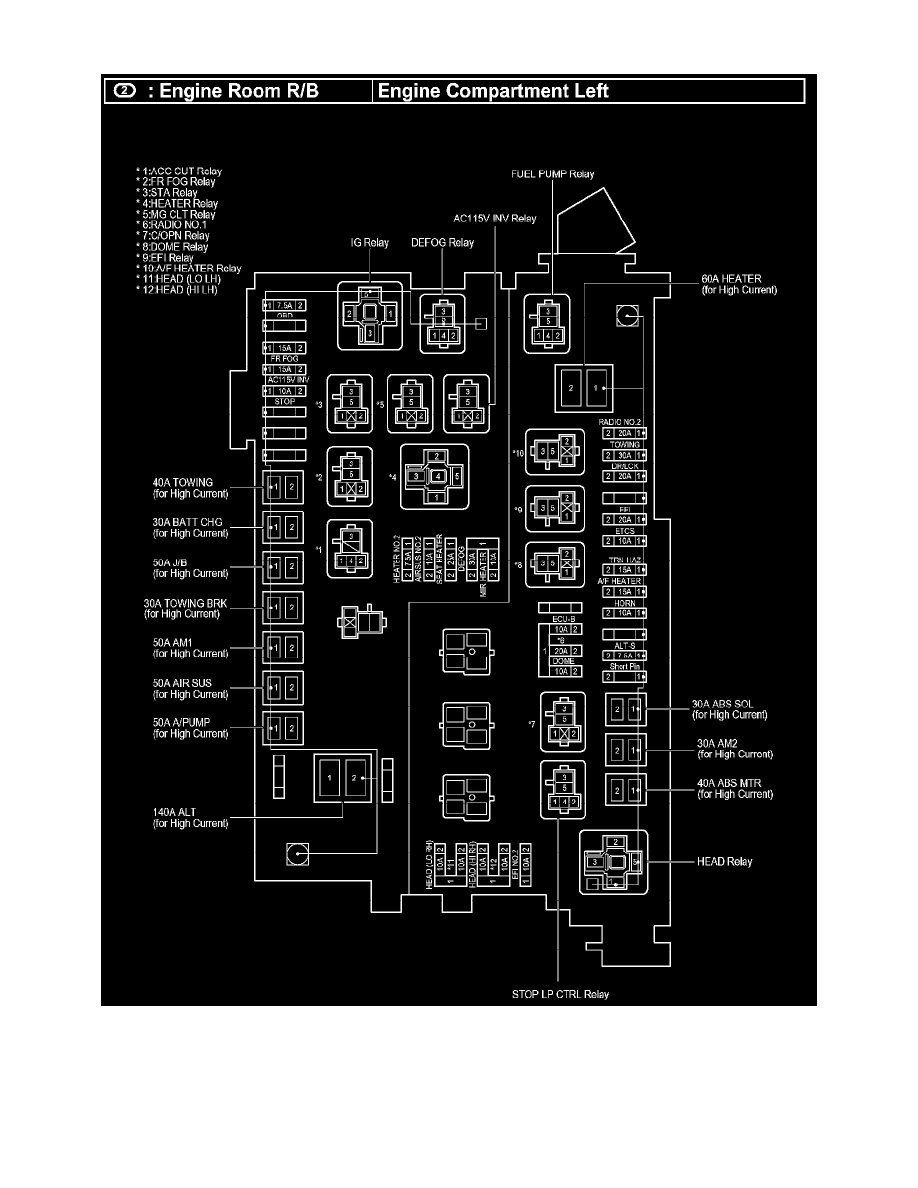

Relay Box: Locations

Engine Room R/B - Left

Power and Ground Distribution
Relay Box
Component Information
Locations
