Camry L4-2.4L (2AZ-FE) (2005)
![background image](/toyota/camry/l4-2.4l_(2az-fe)/Page-347009.png)
^
Do not start the engine for at least 2 hours after installing the cylinder head cover.

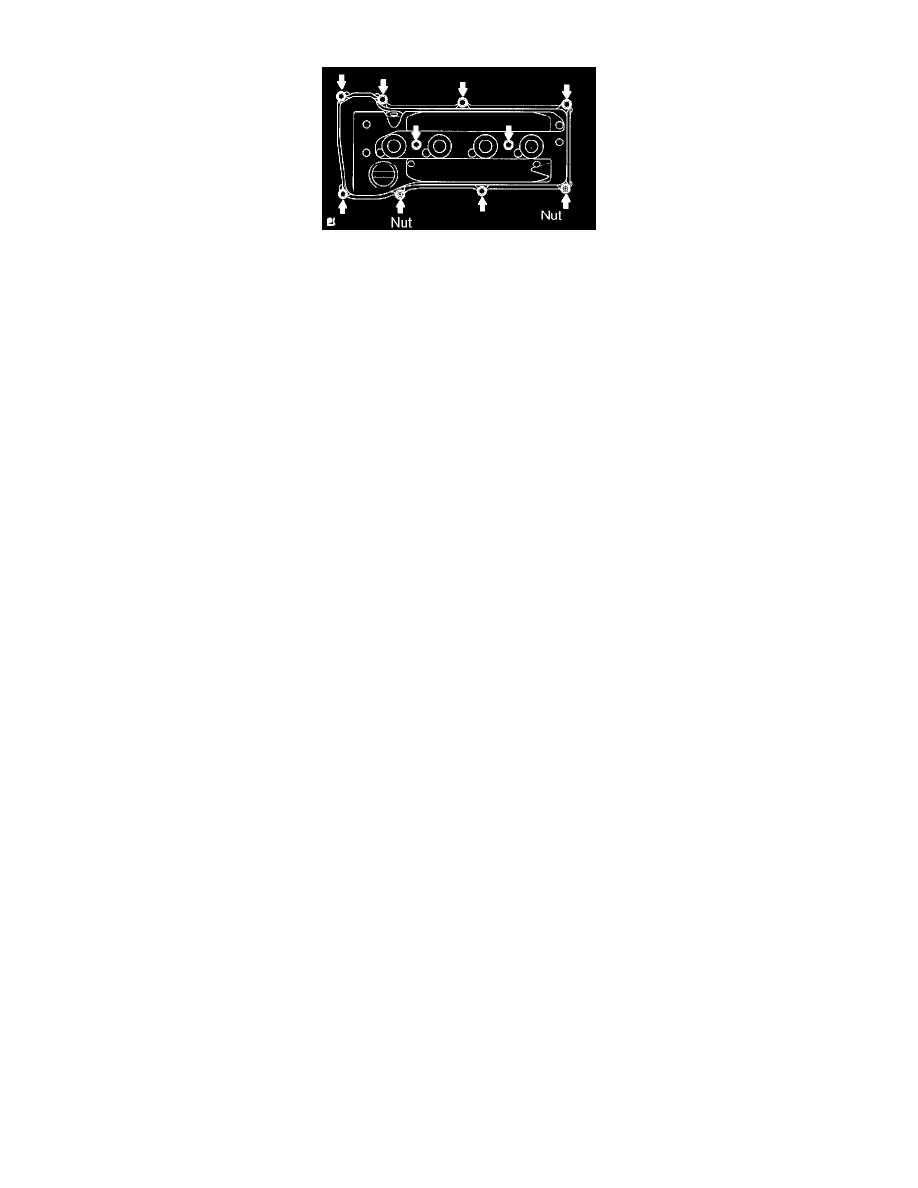

c) Install the cylinder head cover with the 8 bolts and 2 nuts.
Torque: 11 Nm (110 kgf-cm, 8 ft. lbs.)
13. INSTALL SPARK PLUG
Torque: 19 Nm (194 kgf-cm, 14 inch lbs.)
14. INSTALL FRONT WHEEL RH
15. INSPECT OIL LEAK
