Camry L4-2.4L (2AZ-FE) (2005)
/Page-374001.png)
Balance Shaft: Specifications

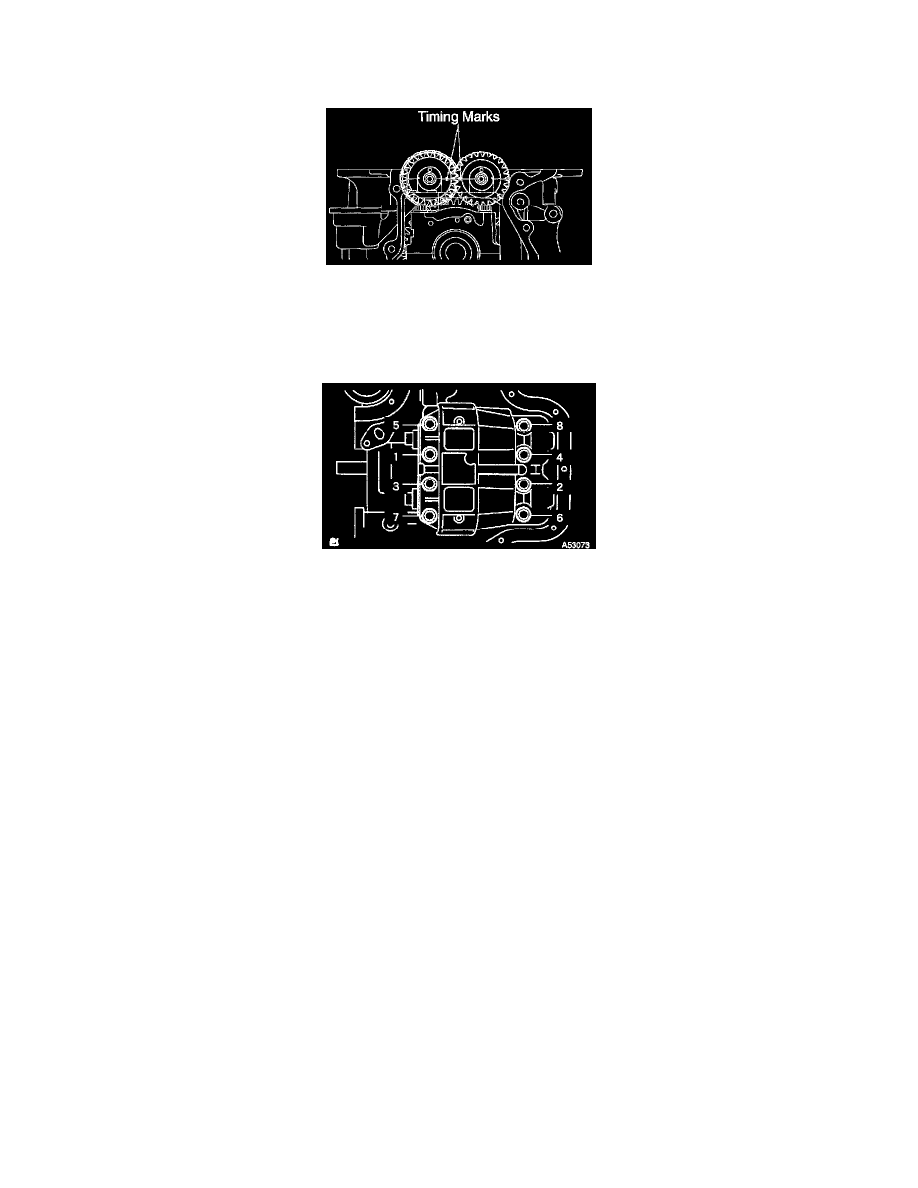

Timing Marks
Housing Bolt Torque
Torque ........................................................................................................................................................................................................ 22 Nm (16 ft lbs)
Torque Sequence
NOTE:Temporarily tighten 8 bolts in several passes as the sequence shows, then fully tighten with specified torque.
