Cruise Control Diagnostic Connector: Testing and Inspection

Diagnosis Circuit

CIRCUIT DESCRIPTION

This circuit sends a signal to the ECU that outputs DTC.

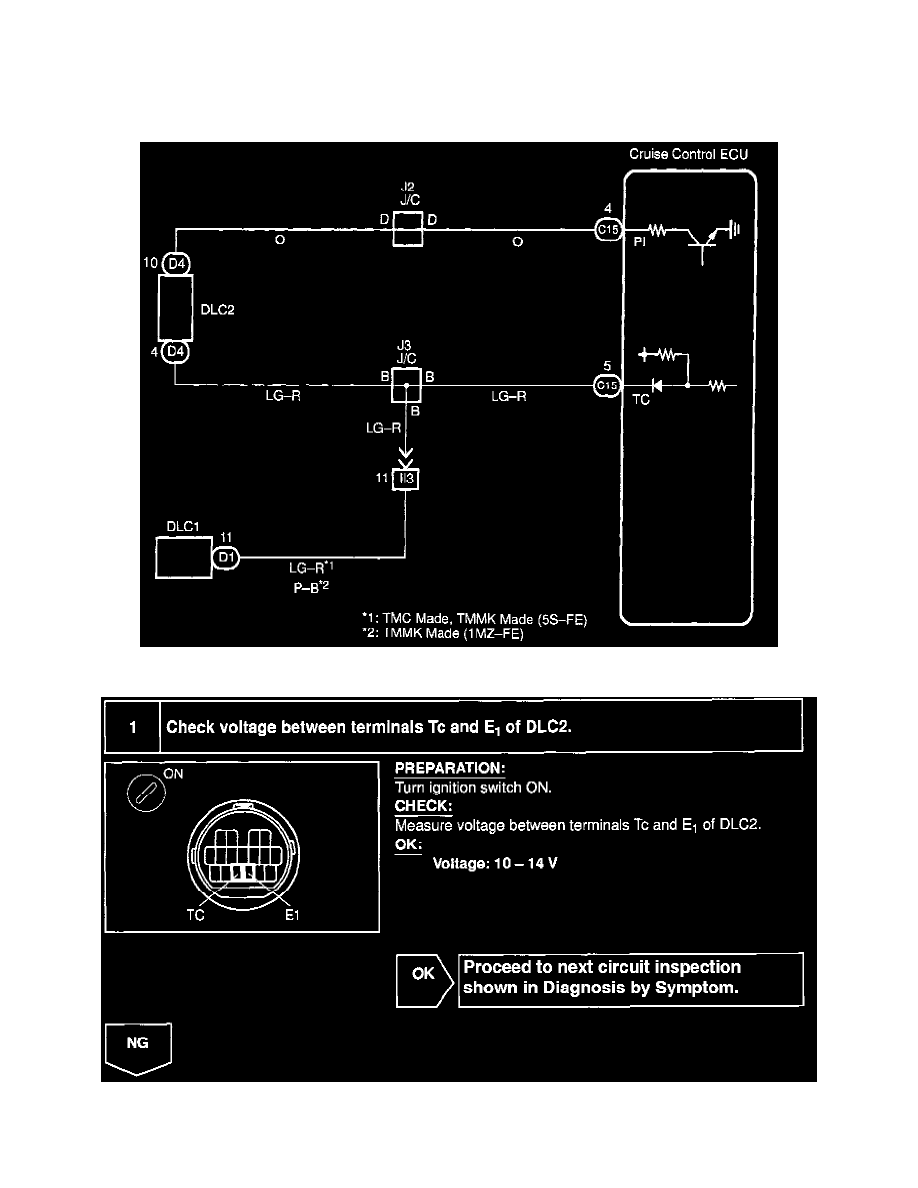

WIRING DIAGRAM

Step 1
