Camry CE Sedan L4-2164cc 2.2L DOHC (5S-FE) MFI (1999)
_mfi/Page-1576002.png)
c. Remove the rubber cap and nut, and disconnect the generator wire.
2. REMOVE GENERATOR

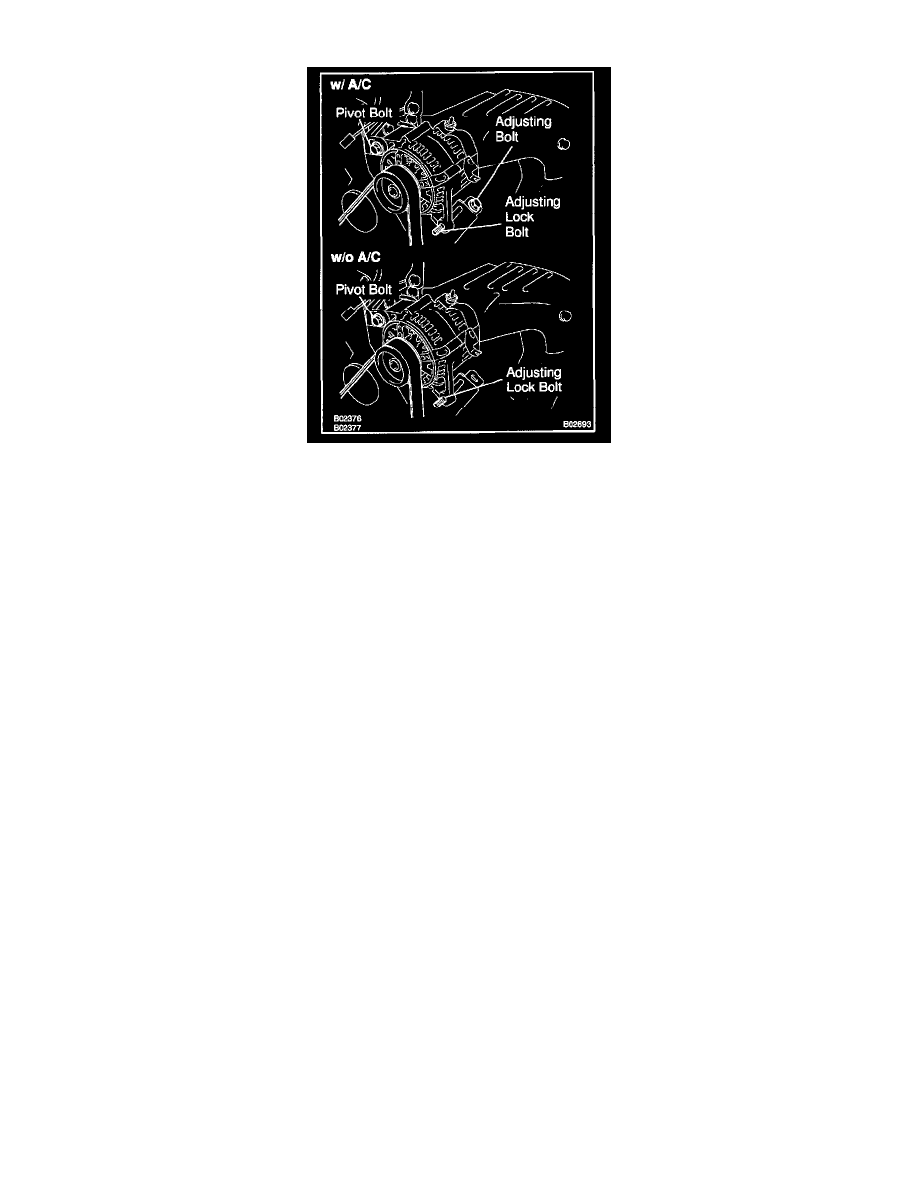

a. Loosen the adjusting lock bolt (w/ A/C), adjusting bolt and pivot bolt
Torque:
Pivot bolt: 52 Nm (530 kgf.cm, 38 ft.lbf)
Adjusting lock bolt (w/ A/C) or adjusting bolt (w/o A/C)
18 Nm (185 kgf.cm, 13 ft.lbf)
b. Remove the drive belt.
c. Remove the adjusting lock bolt (w/ A/C) or adjusting bolt (w/o A/C) and pivot bolt.
d. Remove the generator.
INSTALLATION
Installation is in the reverse order of removal.
