Camry CE Sedan L4-2164cc 2.2L DOHC (5S-FE) MFI (1999)
_mfi/Page-1719004.png)

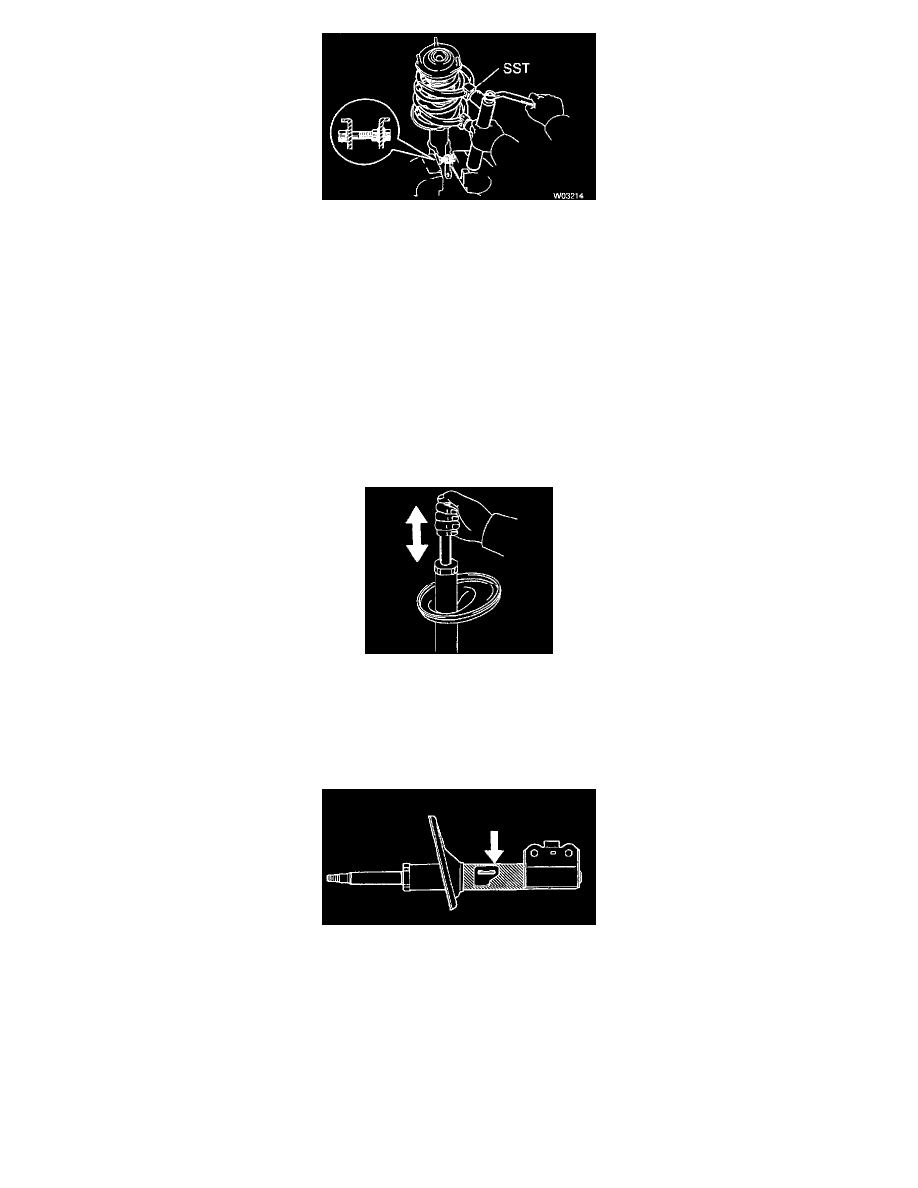

REMOVE COIL SPRING
a. Install 2 nuts and a bolt to the bracket at the lower part of the shock absorber and secure it in a vise.
b. Using Special Service Tool (SST), compress the coil spring.
(SST) 09727-30021
NOTICE: Do not use an impact wrench. It will damage the SST
c. Remove the suspension support nut.
d. Remove these parts from the shock absorber:
-
Suspension support
-
Coil spring
-
Lower insulator
-
Spring bumper
INSPECTION
INSPECT SHOCK ABSORBER
Compress and extend the shock absorber rod and check that there is no abnormal resistance or unusual operation sound.
NOTICE: When discarding the shock absorber, see DISPOSAL.
DISPOSAL
1. FULLY EXTEND SHOCK ABSORBER ROD
2. DRILL HOLE TO REMOVE GAS FROM CYLINDER
Using a drill, make a hole in the cylinder as shown in the illustration to remove the gas inside.
CAUTION: The discharged gas is harmless, but be careful of chips which may fly up when drilling.
REASSEMBLY
1. INSTALL LOWER INSULATOR
2. INSTALL SPRING BUMPER TO PISTON ROD
3. INSTALL COIL SPRING
