Camry CE Sedan L4-2164cc 2.2L DOHC (5S-FE) MFI (1999)
_mfi/Page-1308001.png)

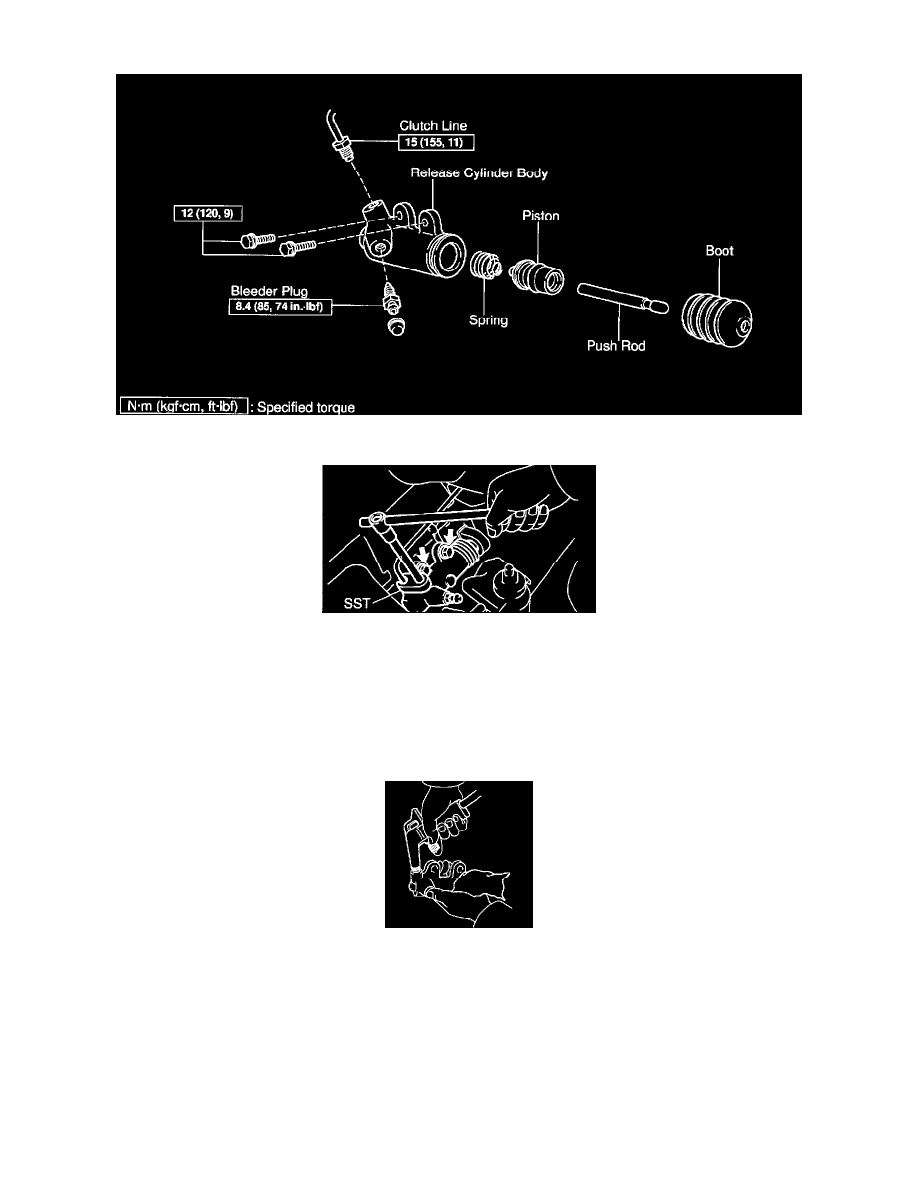

Clutch Slave Cylinder: Service and Repair
REMOVAL
1. DISCONNECT CLUTCH LINE
Using SST, disconnect the line. Use a container to catch the fluid.
SST 09023-00100
Torque: 15 Nm (155 kgf-cm, 11 ft. lbs.)
2. REMOVE 2 BOLTS AND PULL OUT RELEASE CYLINDER
Torque: 12 Nm (120 kgf-cm, 9 ft. lbs.)
DISASSEMBLY
1. REMOVE BLEEDER PLUG
2. PULL OUT BOOT WITH PUSH ROD
3. REMOVE PISTON
Blow compressed air into the release cylinder and remove the piston with spring.
REASSEMBLY
