Testing and Inspection for ABS (TMC/Denso Made)
Electronic Brake Control Module: Testing and Inspection
ABS (TMC/Denso Made)
ECU Data Monitor Using Toyota Tester
ECU TERMINAL VALUES MEASUREMENT
USING TOYOTA BREAK-OUT-BOX AND TOYOTA HAND-HELD TESTER
1.

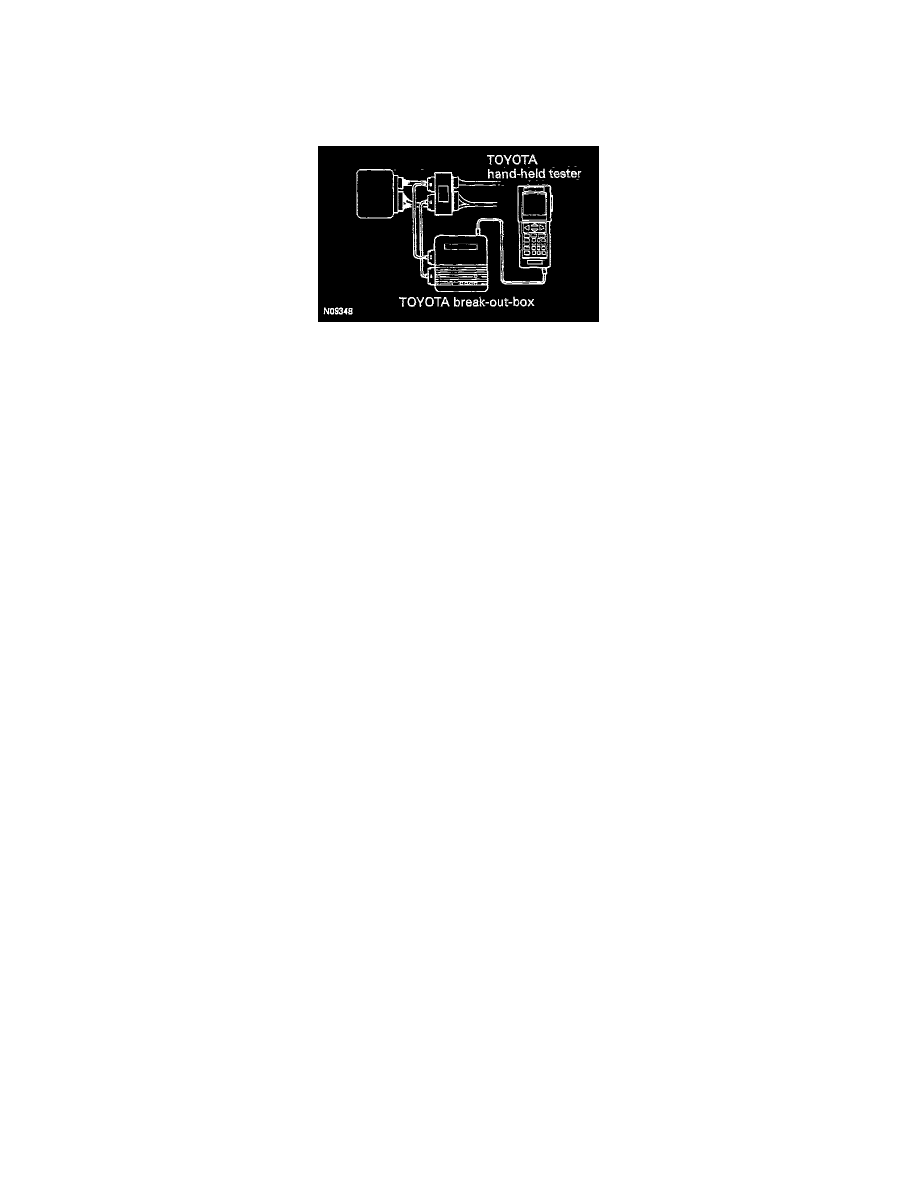

Hook up the TOYOTA break-out-box and TOYOTA hand-held tester to the vehicle.
2.
Read the ECU input/output values by following the prompts on the tester screen.
HINT: TOYOTA hand-held tester has a"Snapshot"function. This records the measured values and is effective in the diagnosis of intermittent
problems.
Please refer to the TOYOTA hand-held tester/TOYOTA break-out-box operator's manual for further details.
