Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
Recommended spark plugs:
-
ND: PK20TR11
-
NGK: BKR6EKPB11

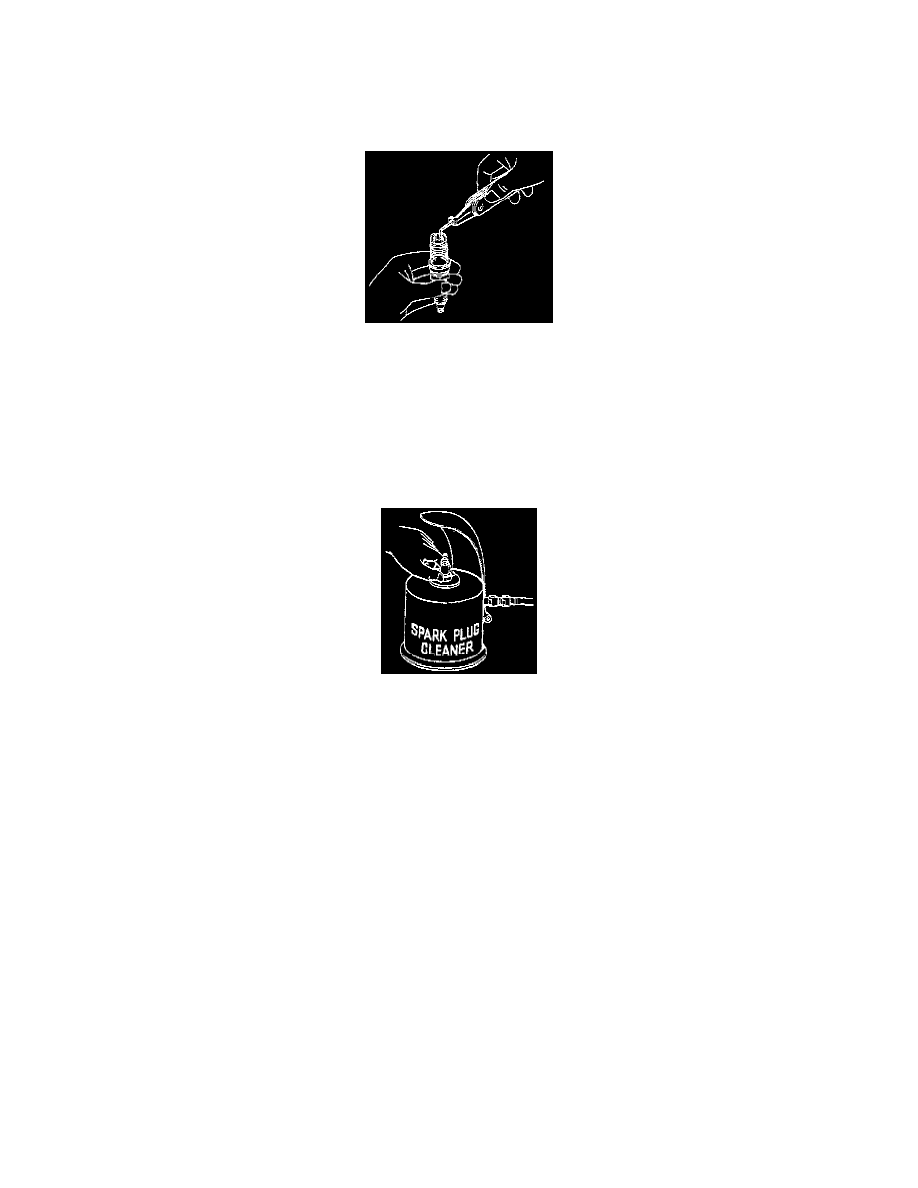

5. INSPECT ELECTRODE GAPS
Maximum gap for used spark plug: 1.3 mm (0.051 in.)
Correct gap for new spark plug: 1.1 mm (0.043 in.)
-
If the gap is greater than maximum, replace the spark plug.
NOTICE: If adjusting the gap of a new spark plug, bend only the base of the ground electrode. Do not touch the tip. Never attempt to adjust
the gap on the used plug.
6. CLEAN SPARK PLUGS
-
If the electrode has traces of wet carbon, allow it to dry and then clean with a spark plug cleaner.
HINT: If there are traces of oil, remove it with gasoline before using the spark plug cleaner.
Air pressure: Below 588 kPa (6 kgf/sq.cm, 85 psi)
Duration: 20 seconds or less
7. REINSTALL SPARK PLUGS
-
Using a 16 mm plug wrench, install the 6 spark plugs to the RH and LH cylinder heads.
Torque: 18 Nm (180 kgf.cm, 13 ft.lb)
8. REINSTALL IGNITION COILS
