Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
Catalytic Converter: Service and Repair

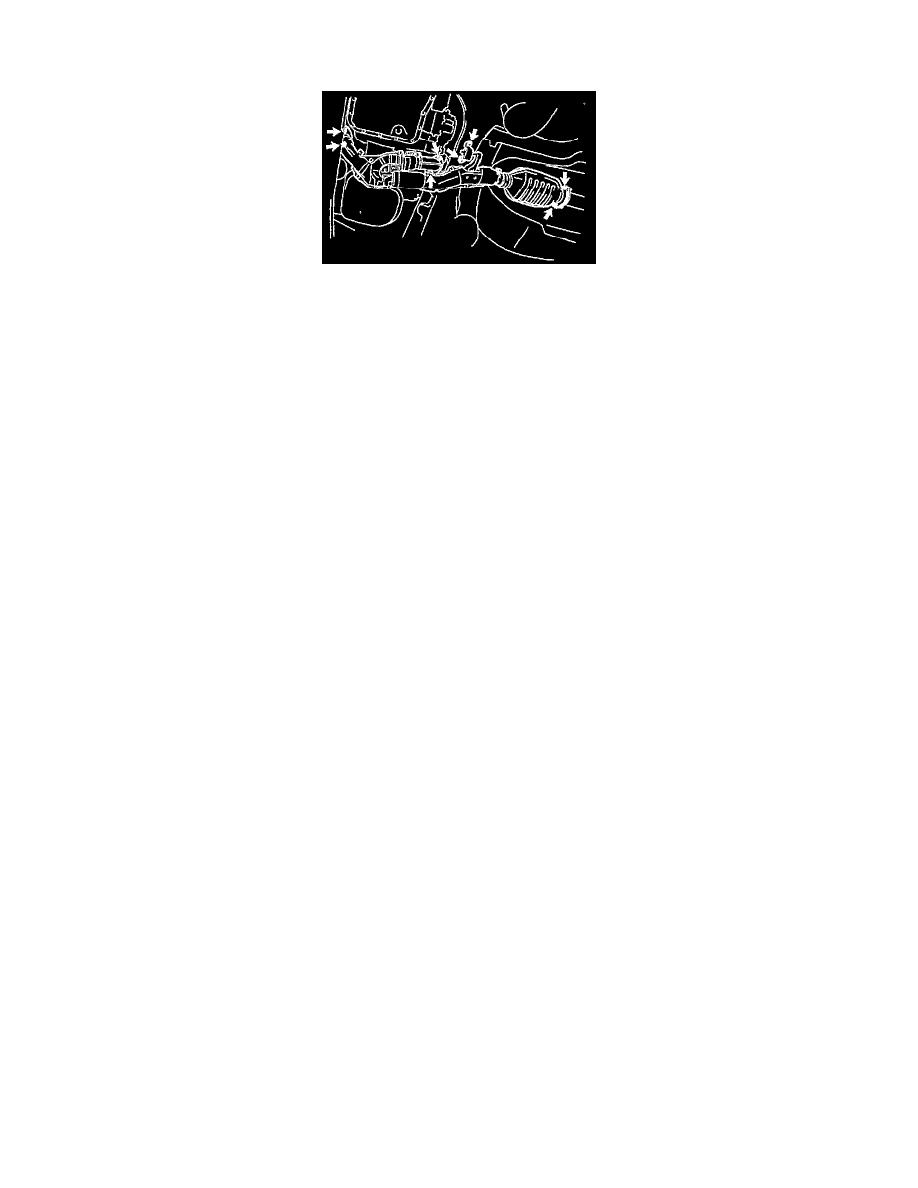

THREE-WAY CATALYTIC CONVERTER REPLACEMENT
1. REMOVE CONVERTER
-
Check that the converter is cool.
-
Remove the 2 bolts and exhaust pipe clamp.
Torque: 29 Nm (300 kgf.cm, 22 ft.lb)
-
Remove the 2 bolts, and disconnect the bracket.
Torque: 19 Nm (195 kgf.cm, 14 ft.lb)
-
Remove the 2 bolts and 2 nuts holding the front exhaust pipe to the center exhaust pipe.
Torque: 56 Nm (570 kgf.cm, 41 ft.lb)
-
Remove the 4 nuts holding the front exhaust pipe to the exhaust manifolds.
Torque: 62 Nm (630 kgf.cm, 46 ft.lb)
-
Remove the front exhaust pipe and 3 gaskets.
INSTALLATION HINT: Install 3 new gaskets.
2. REINSTALL CONVERTER
INSTALLATION HINT: Installation is the reverse order of removal.
