Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
/Page-1548001.png)
Air Door Actuator / Motor: Service and Repair

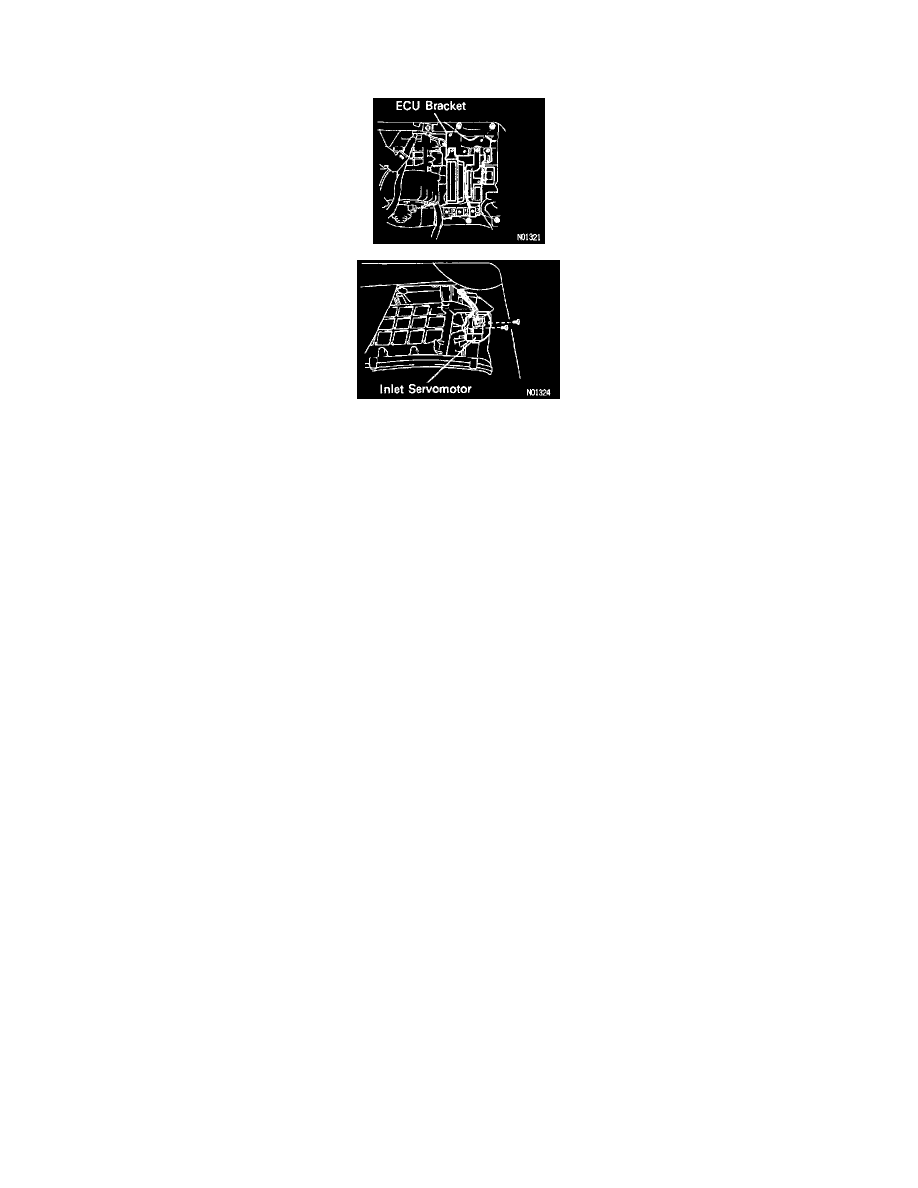

Air Inlet Servomotor
REMOVAL
1. Remove glove compartment.
2. Remove electronic control unit (ECU) and ECU bracket.
3. Remove servomotor.
a. Disconnect the connector.
b. Remove the two screws and the servo motor.
Installation is in the reverse order of removal.
