Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
Blower Motor: Service and Repair
BLOWER UNIT REMOVAL
1. REMOVE GLOVE COMPARTMENT

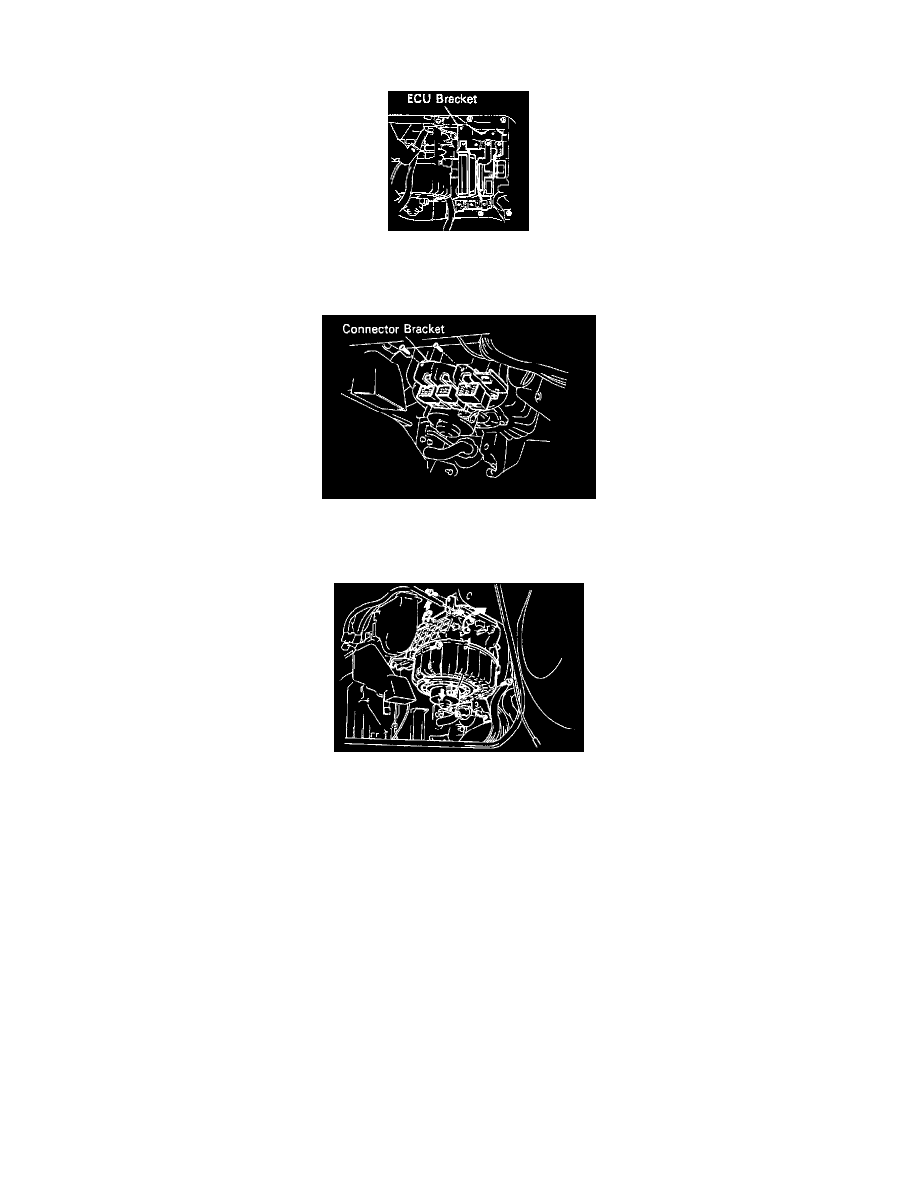

2. REMOVE ECU AND ECU BRACKET
3. REMOVE CONNECTOR BRACKET
(a) Disconnect the connector from the connector bracket.
(b) Remove the 2 screws and the bracket.
4. REMOVE BLOWER UNIT
(a) Disconnect the connectors from the blower unit.
(b) Lever type:
Disconnect the air inlet damper control cable.
(c) Remove the 3 screws, nut and the blower unit.
BLOWER UNIT INSTALLATION
Installation is in the reverse order of removal.
