Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
Heating and Air Conditioning
Condenser Fan Motor Relay, HVAC / Locations
Page 6016
Page 5

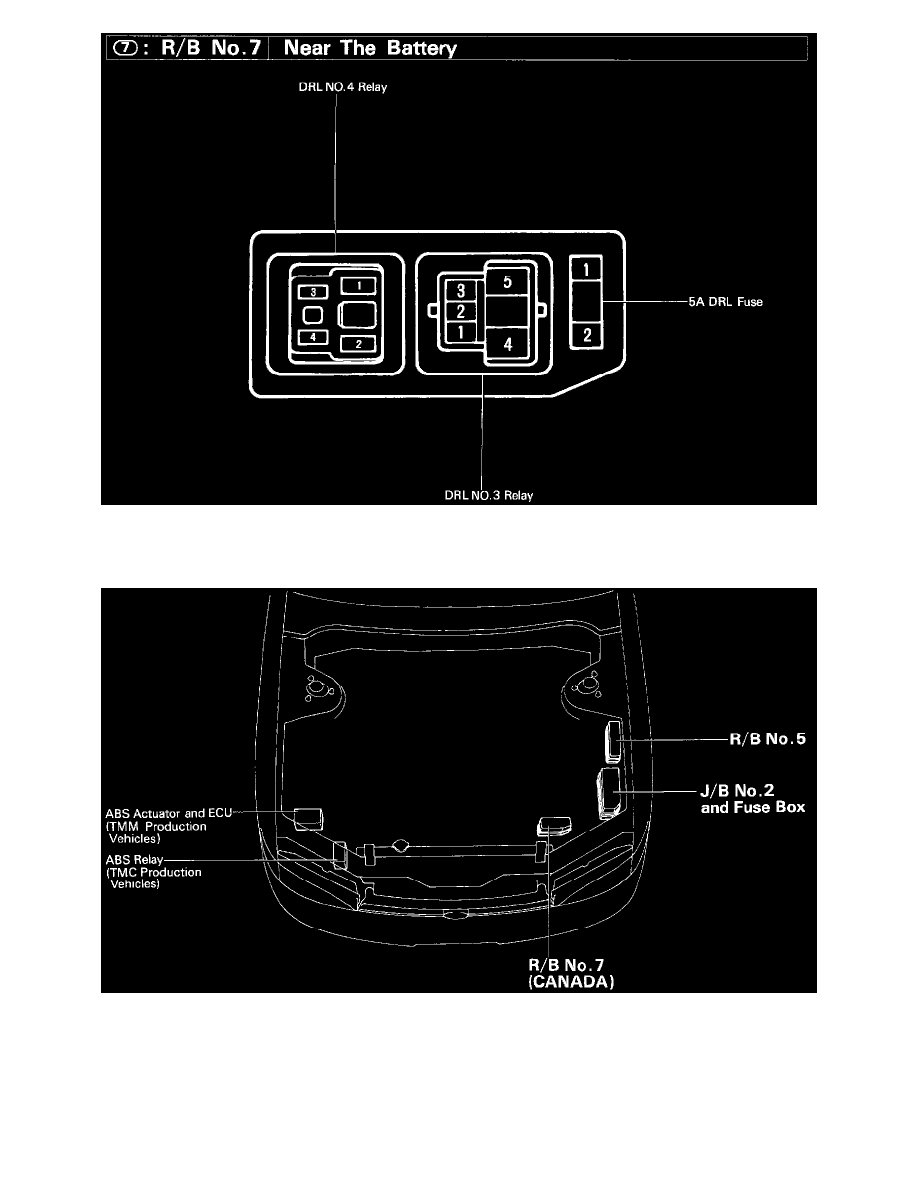

Locations-R/B No.7 Near The Battery (Fig 27)
Details
Locations-Engine Compartment (Fig 18)
Heating and Air Conditioning
Condenser Fan Motor Relay, HVAC / Locations
Page 6016
