Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
/Page-1586002.png)

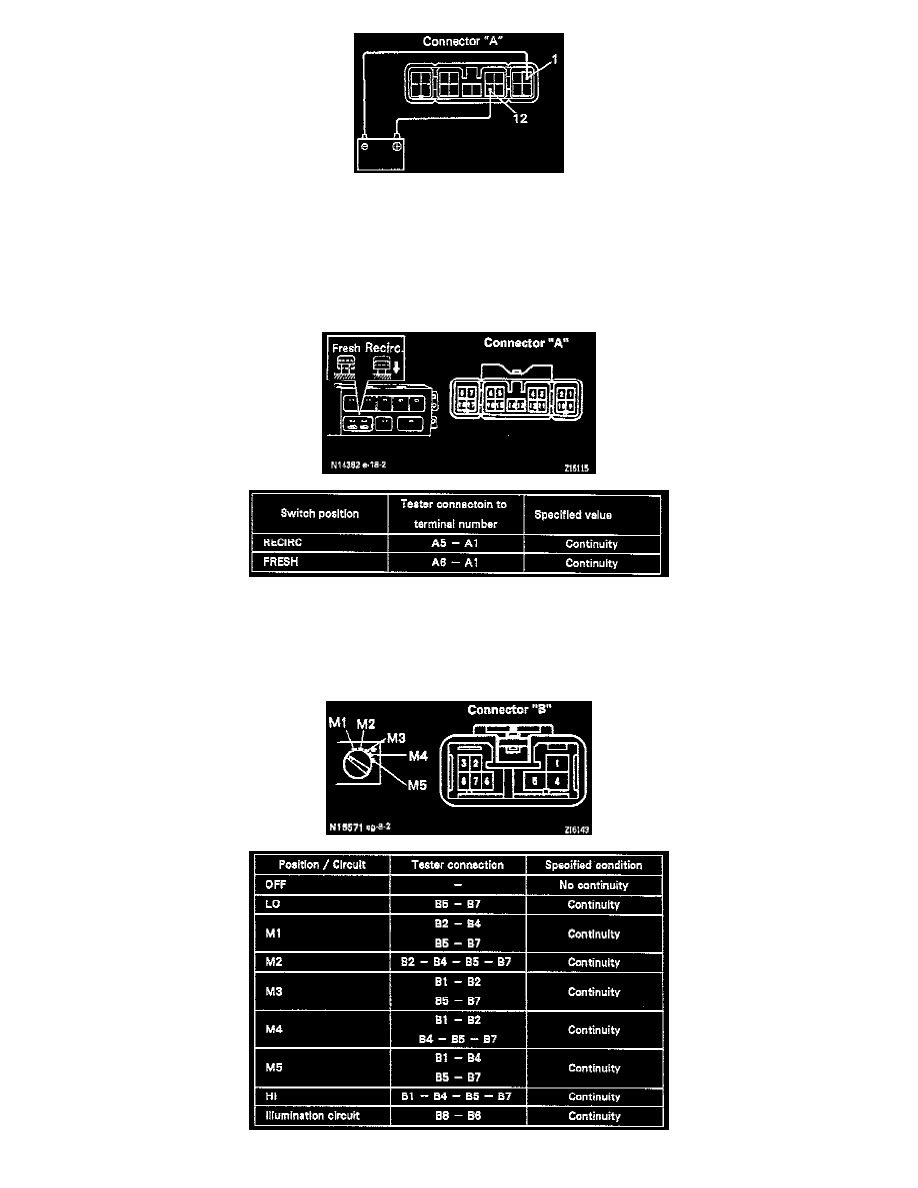

INSPECT AIR INLET INDICATOR
1. Connect the positive (+) lead from the battery terminal A-12 and the negative (-) lead terminal A-1.
2. Check that the FRESH and RECIRC indicators light up alternately each time the air in let control switch button is pressed.
If operation is not as specified, replace the A/C control assembly.
Air Inlet Switch
INSPECT AIR INLET CONTROL SWITCH CONTINUITY
If continuity is not as specified, replace the A/C control assembly.
Blower Speed Control Switch
