ABS Light: Testing and Inspection
ABS (TMMK/Bosch Made)
ABS Warning Light Circuit
CIRCUIT DESCRIPTION
If the ECU detects trouble, it lights the ABS warning light while at the same time prohibiting ABS control. At this time, the ECU records a DTC in
memory.
Connect terminals Tc and E1 of the DLC1 or DLC2 to make the ABS warning light blink and output the DTC.

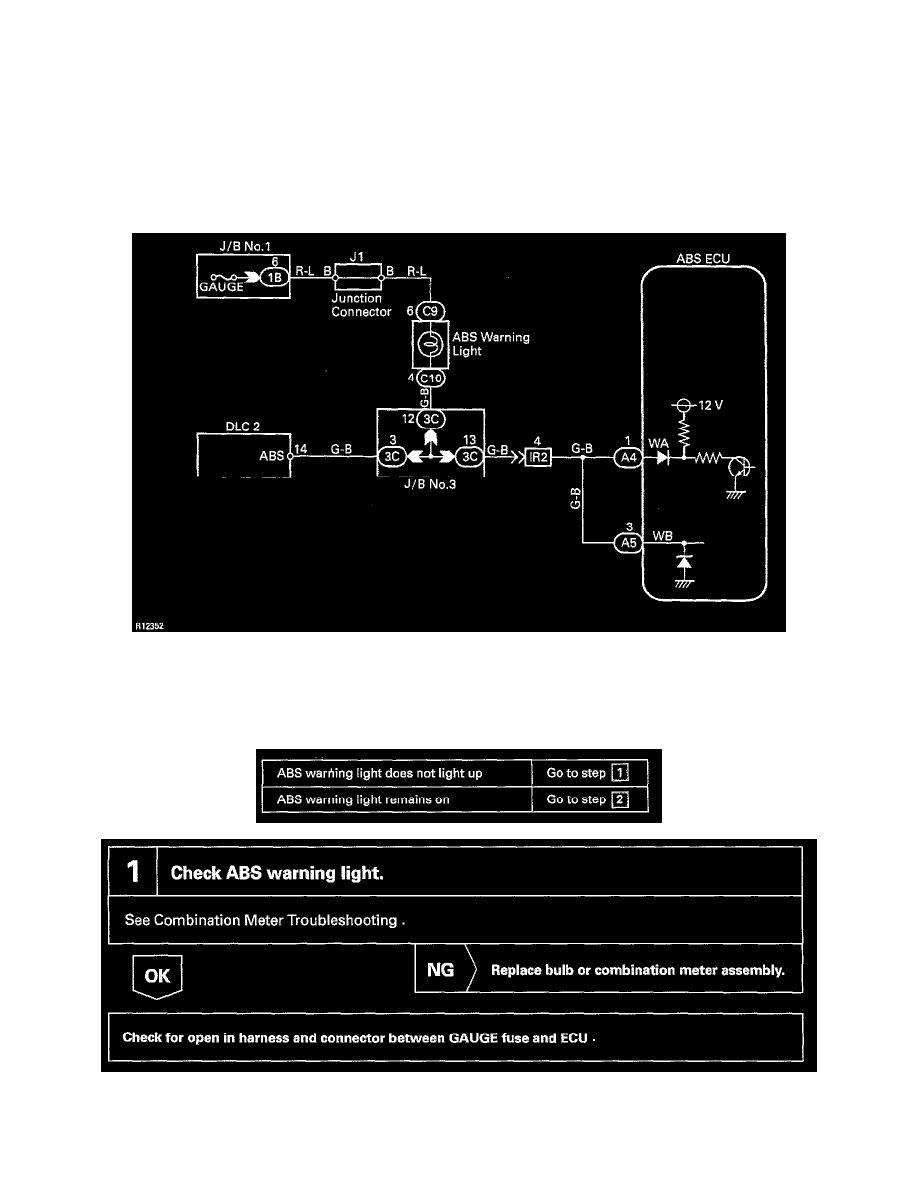

Wiring Diagram
INSPECTION PROCEDURE
Troubleshoot in accordance with the chart below for each trouble symptom.
Step 1
