Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
Power and Ground Distribution
Relays and Modules - Power and Ground Distribution
Relay Box / Locations
Page 5659
Page 3

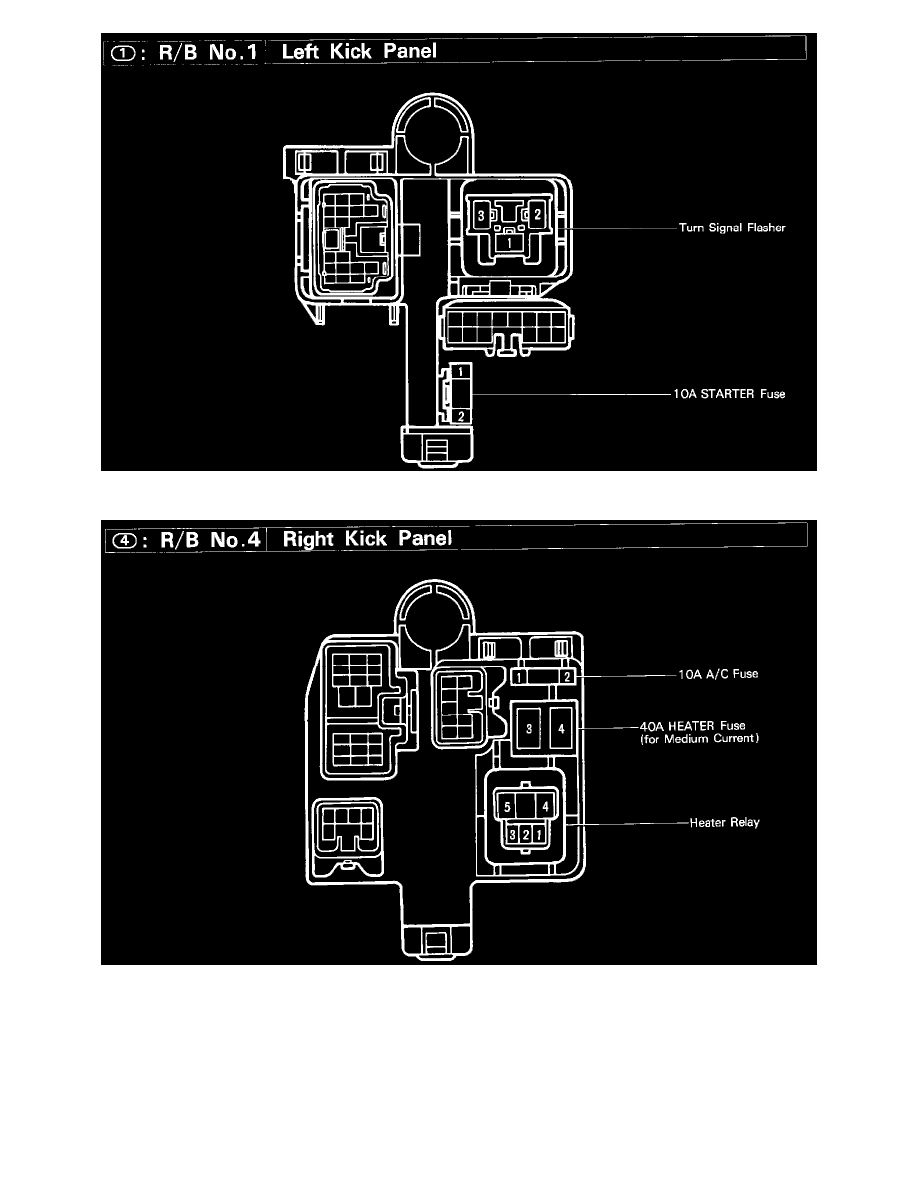

Locations-R/B No.1 Left Kick Panel (Fig 25)
Locations-R/B No.4 Right Kick Panel (Fig 25)
Power and Ground Distribution
Relays and Modules - Power and Ground Distribution
Relay Box / Locations
Page 5659
