Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
/Page-679001.png)
A/C Signal: Testing and Inspection
Inspection Using Toyota Hand-Held Tester
A/C Cut Control Circuit
CIRCUIT DESCRIPTION
This circuit cuts air conditioning operation during vehicle acceleration in order to increase acceleration performance. During acceleration with the
vehicle speed at 25 km/h (16 mph) or less, engine speed at 1,600 rpm or less and throttle valve opening angle at 6O ° or more, the A/C magnetic
switch is turned OFF for several seconds.

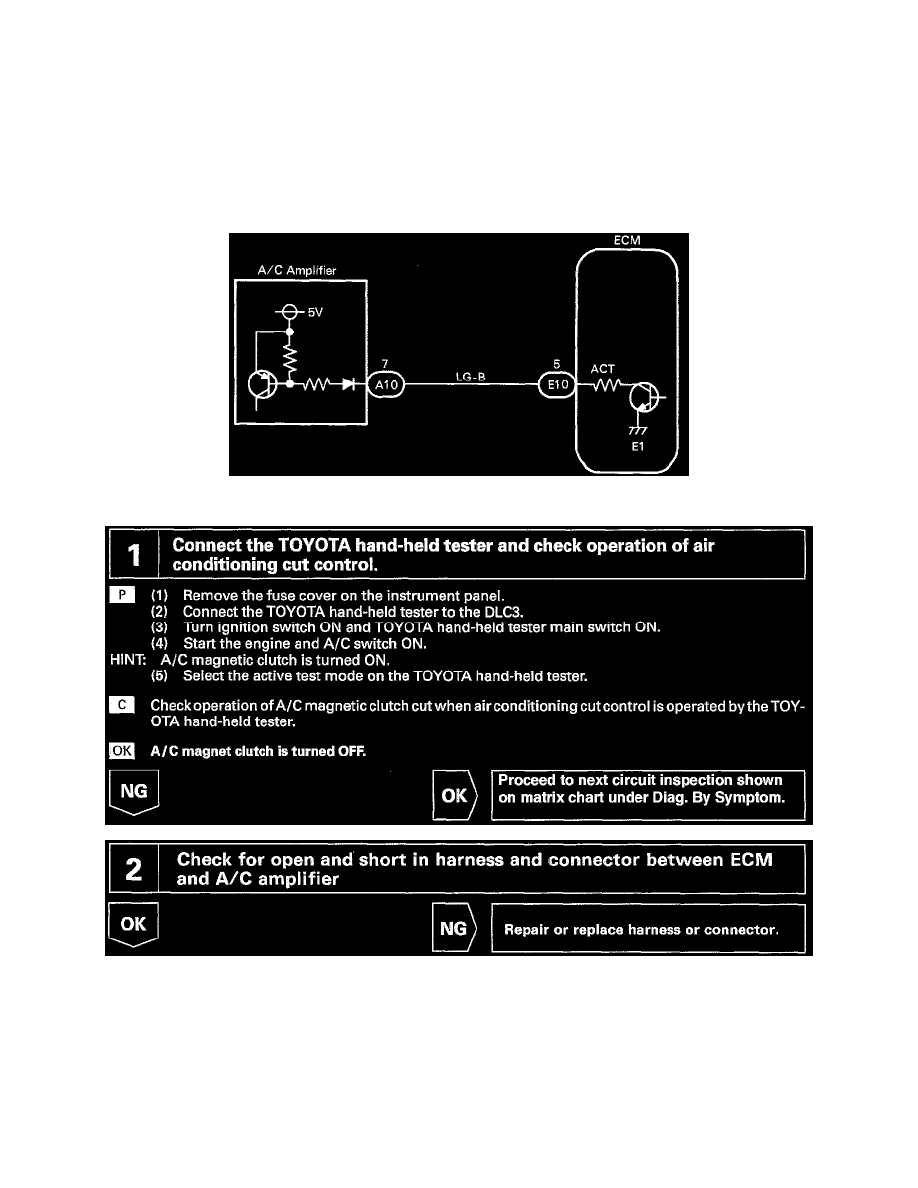

WIRING DIAGRAM
INSPECTION PROCEDURE
