Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
/Page-750003.png)

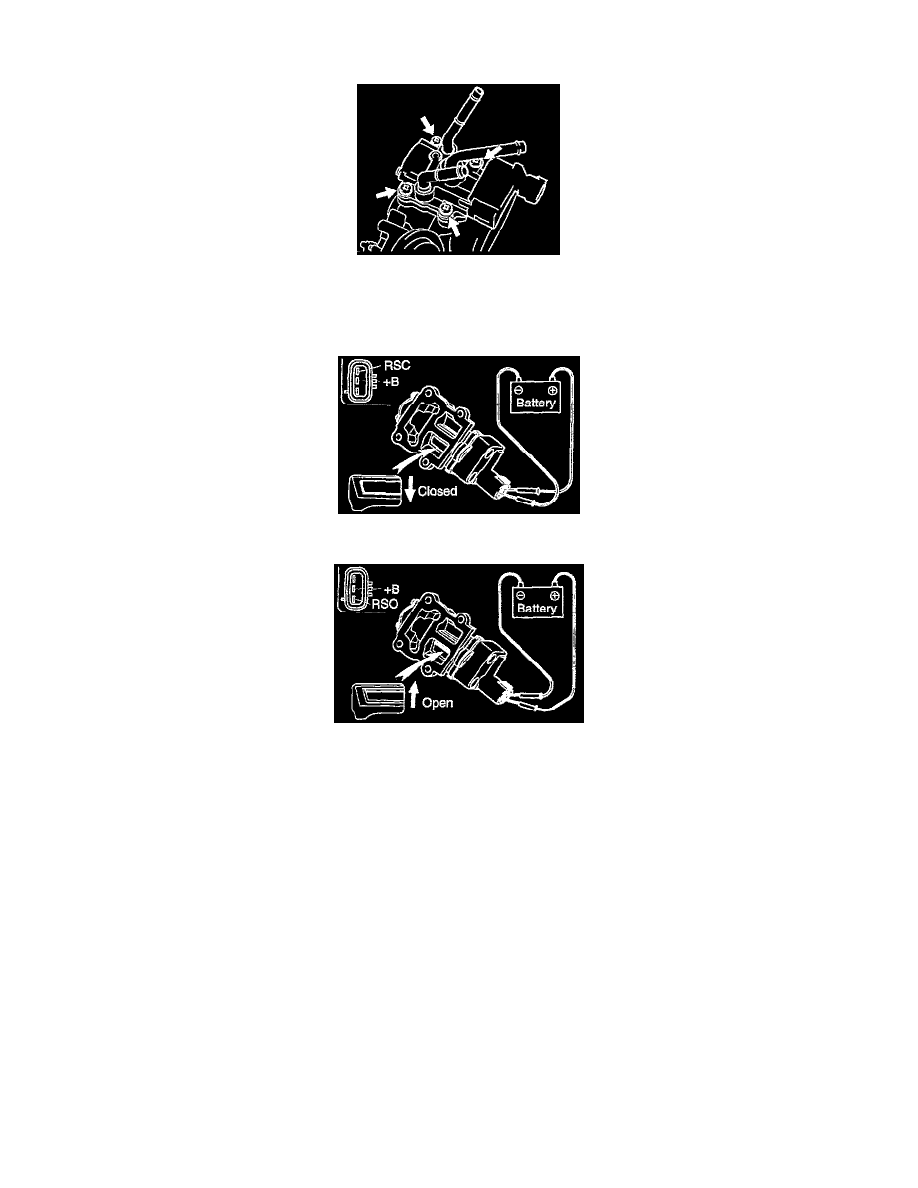

2. REMOVE IAC VALVE
-
Remove the 4 screws, IAC valve and gasket.
INSTALLATION HINT: Place a new gasket on the throttle body.
3. INSPECT IAC VALVE OPERATION
-
Connect the positive (+) lead from the battery to terminal +B and negative (-) lead to terminal RSC, and check that the valve is closed.
-
Connect the positive (+) lead from the battery to terminal +B and negative (-) lead to terminal RSO, and check that the valve is open.
-
If operation is not as specified, replace the IAC valve.
INSTALLATION HINT: Installation is in the reverse order of removal.
