Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
Throttle Position Sensor: Adjustments

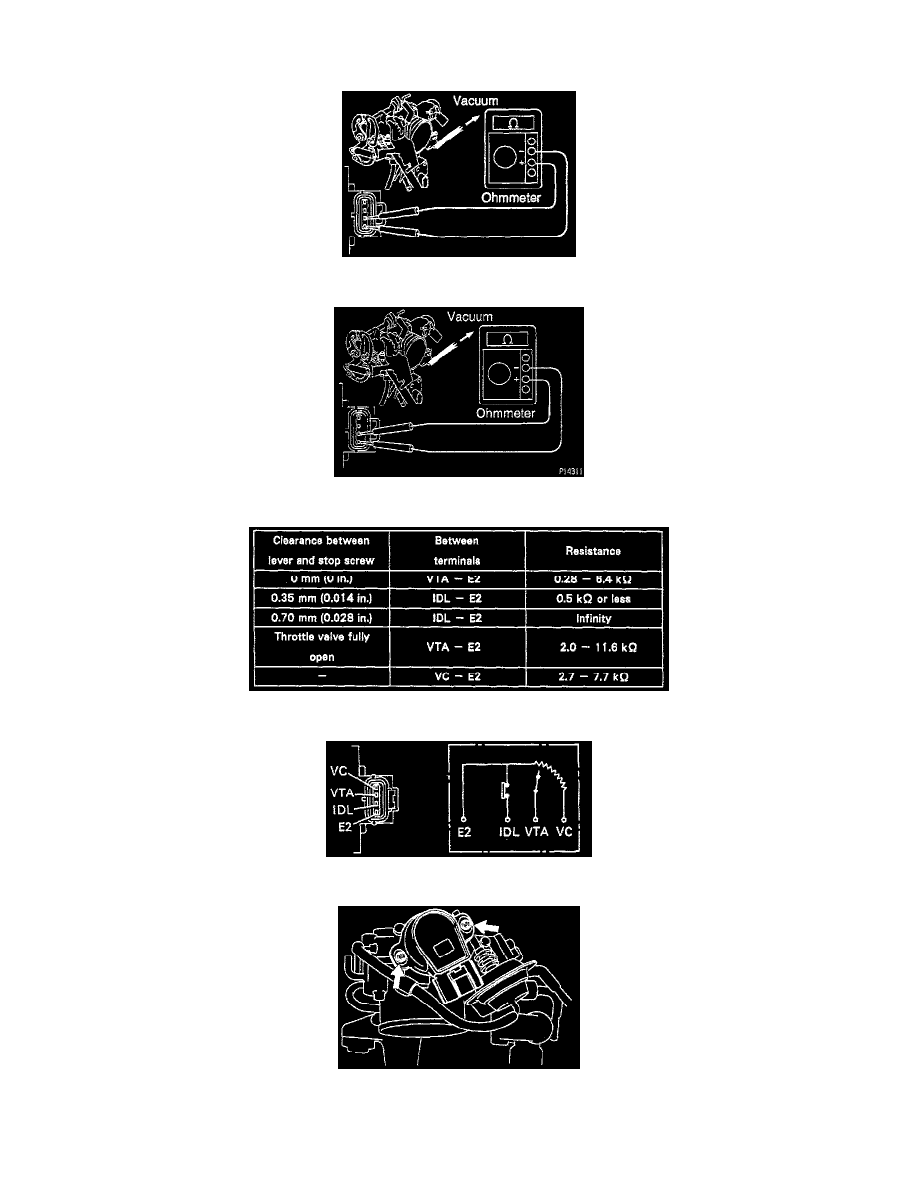

THROTTLE POSITION SENSOR INSPECTION
-
Apply vacuum to the throttle opener.
-
Insert a thickness gauge between the throttle stop screw and stop lever
-
Using an ohmmeter, measure the resistance between each terminal.
THROTTLE POSITION SENSOR ADJUSTMENT
-
Loosen the 2 set screws of the sensor.
