Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
/Page-894001.png)
Evaporative Emission Control Canister: Testing and Inspection

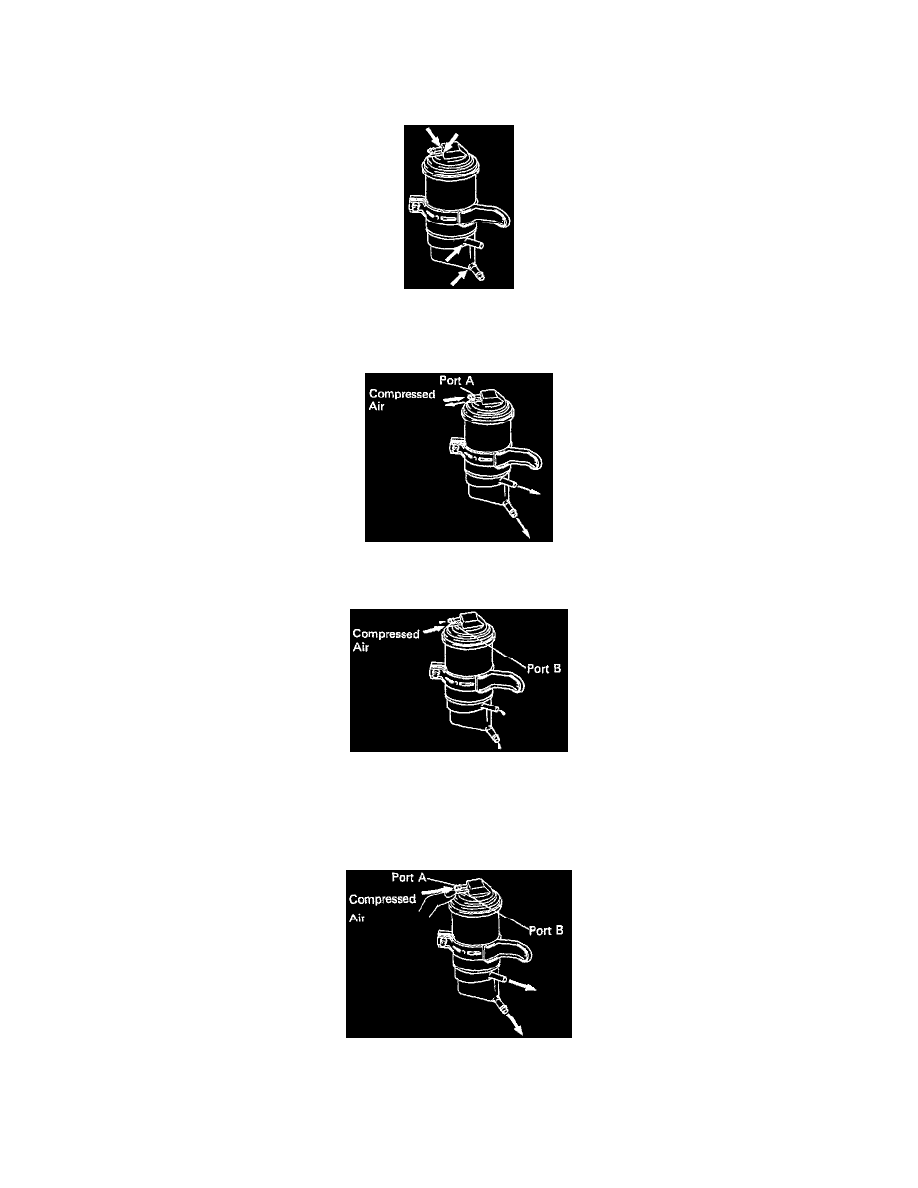

CHARCOAL CANISTER INSPECTION
1. REMOVE CHARCOAL CANISTER
2. VISUALLY INSPECT CHARCOAL CANISTER
-
Look for cracks or damage.
3. CHECK FOR CLOGGED FILTER AND STUCK CHECK VALVE
-
Using low pressure compressed air (4.71 kPa (48 g/sq.cm, 0.68 psi)), blow into port A and check that air flows without resistance from the
other ports.
-
Blow air (4.71 kPa (48 gf/sq.cm, 0.68 psi)) into port B, and check that air does not flow from the other ports.
-
If operation is not as specified, replace the charcoal canister.
4. CLEAN FILTER IN CANISTER
-
Clean the filter by blowing 294 kPa (3 kgf/sq.cm, 43 psi) of compressed air into port A while holding port B closed.
NOTICE:
-
Do not attempt to wash the canister.
-
No activated carbon should come out.
