Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
EGR Temperature Sensor: Testing and Inspection

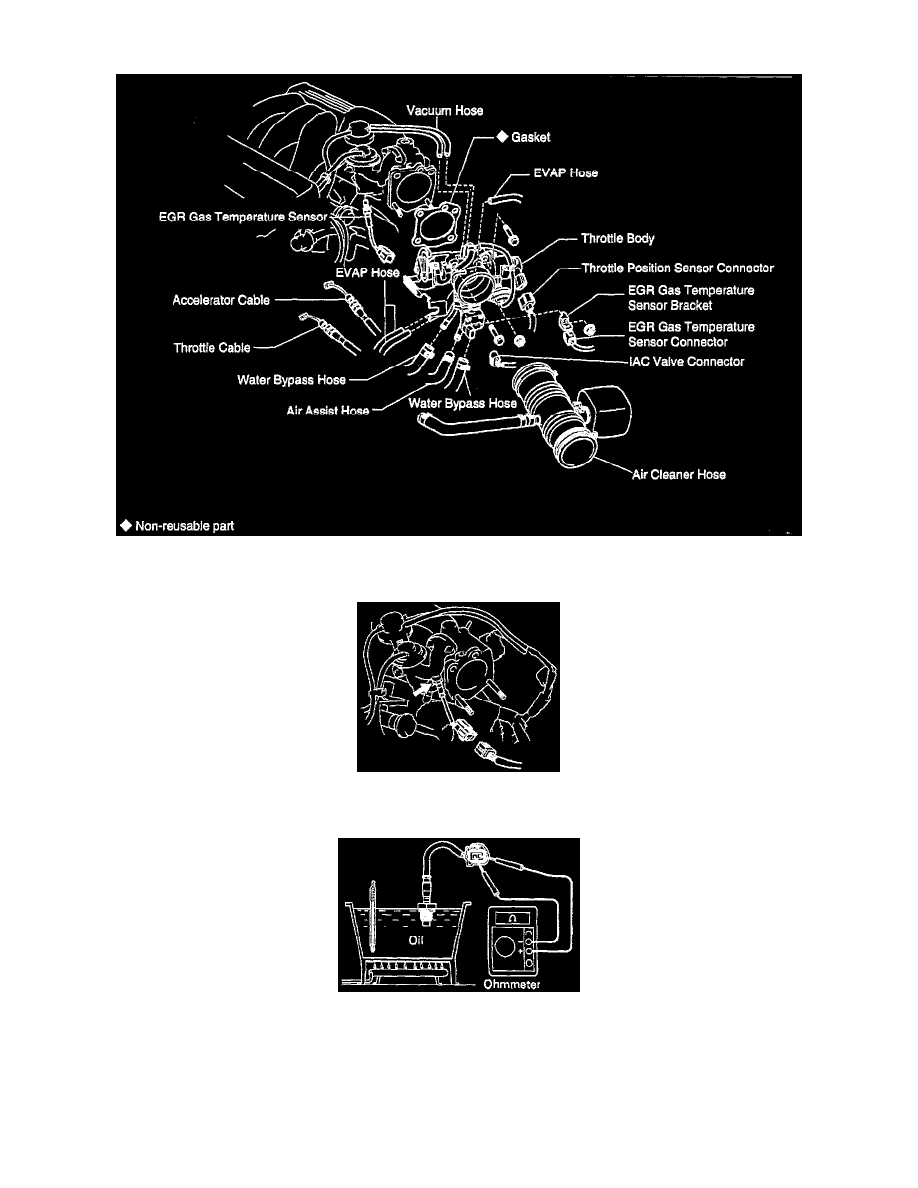

EGR GAS TEMPERATURE SENSOR INSPECTION
1. REMOVE THROTTLE BODY
2. REMOVE EGR GAS TEMPERATURE SENSOR
3. INSPECT EGR GAS TEMPERATURE SENSOR
-
Using an ohmmeter, measure the resistance between the terminals.
Resistance:
At 50°C (122°F): 64 - 97 k ohms
At 100°C (212°F): 11 - 16 k ohms
At 150°C (3O2°F): 2 - 4 k ohms
-
If the resistance is not as specified, replace the sensor.
