Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
-

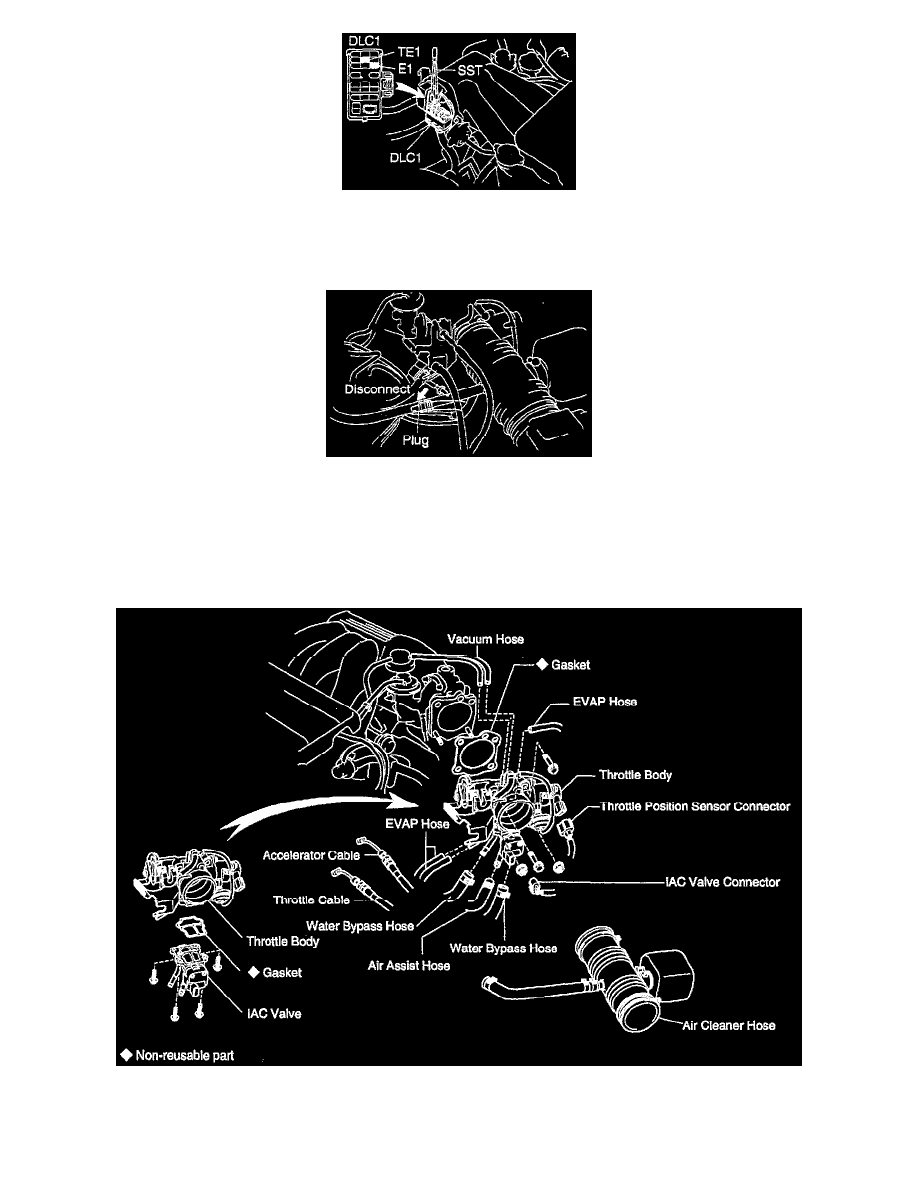

Using a jumper wire (or SST 09843-18020), connect terminals TE1 and E1 of the DLC1.
SST 09843-18020
-
After engine speed is kept at 900 - 1,300 rpm for 10 seconds, check that it returns to idle speed.
-
Stop the engine.
-
Disconnect the air assist hose from the air pipe, and block off the IAC valve exit and the entry to the pipe.
-
Start the engine and check that the idle speed reaches 500 rpm or below (the engine may stall).
-
If the idle does not reach 500 rpm or below, check for a leak between the air pipe and injector.
-
Remove the jumper from the DLC1.
-
Reconnect the air assist hose to the air pipe.
OFF-VEHICLE INSPECTION
1. REMOVE THROTTLE BODY
-
Refer to Throttle Body Service and Repair.
See: Throttle Body
