Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
/Page-986001.png)
Idle Speed/Throttle Actuator - Electronic: Service and Repair

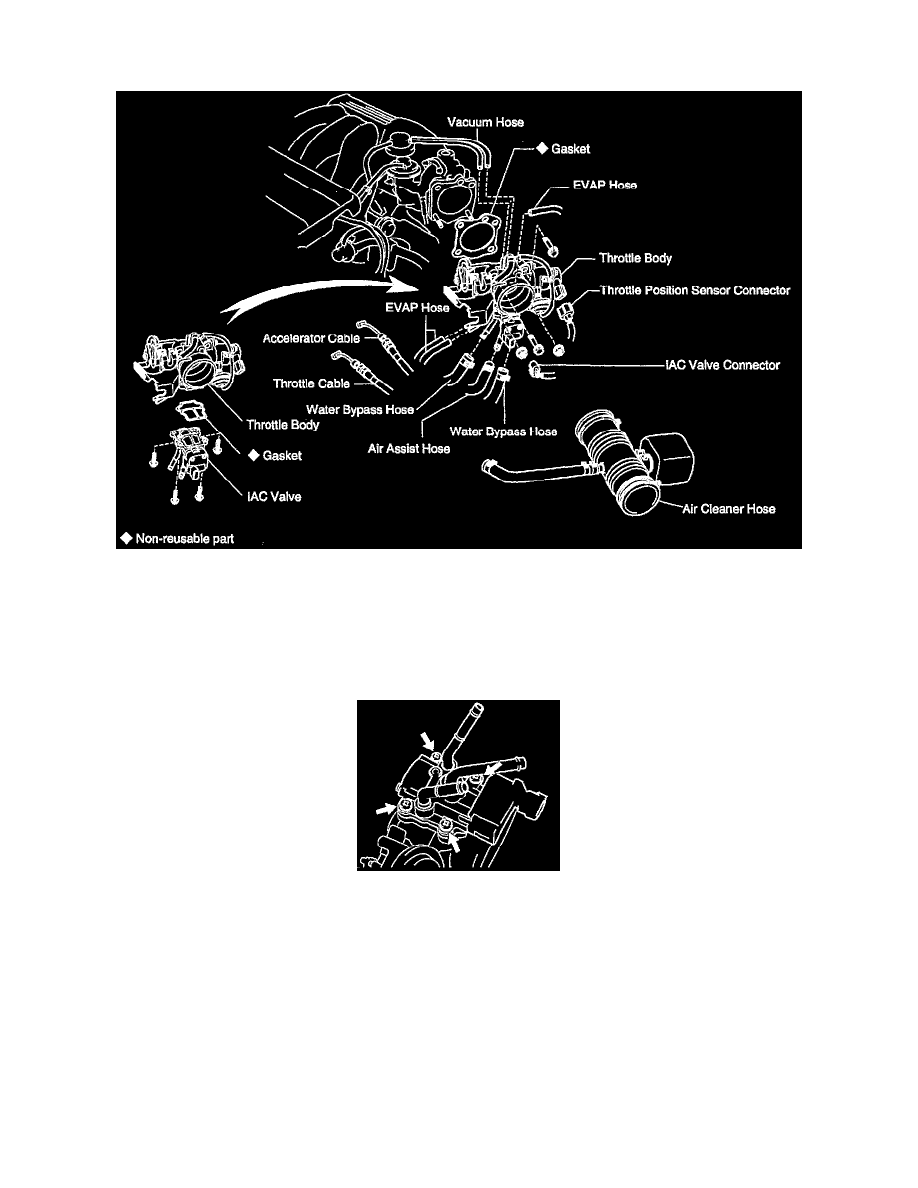

IAC VALVE REMOVAL
NOTE: Installation is in the reverse order of removal.
1. REMOVE THROTTLE BODY
-
Refer to Throttle Body Service and Repair.
See: Throttle Body
2. REMOVE IAC VALVE
-
Remove the 4 screws, IAC valve and gasket.
INSTALLATION HINT: Place a new gasket on the throttle body.
