Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
/Page-1021001.png)
Throttle Body: Testing and Inspection
Off-Vehicle Inspection

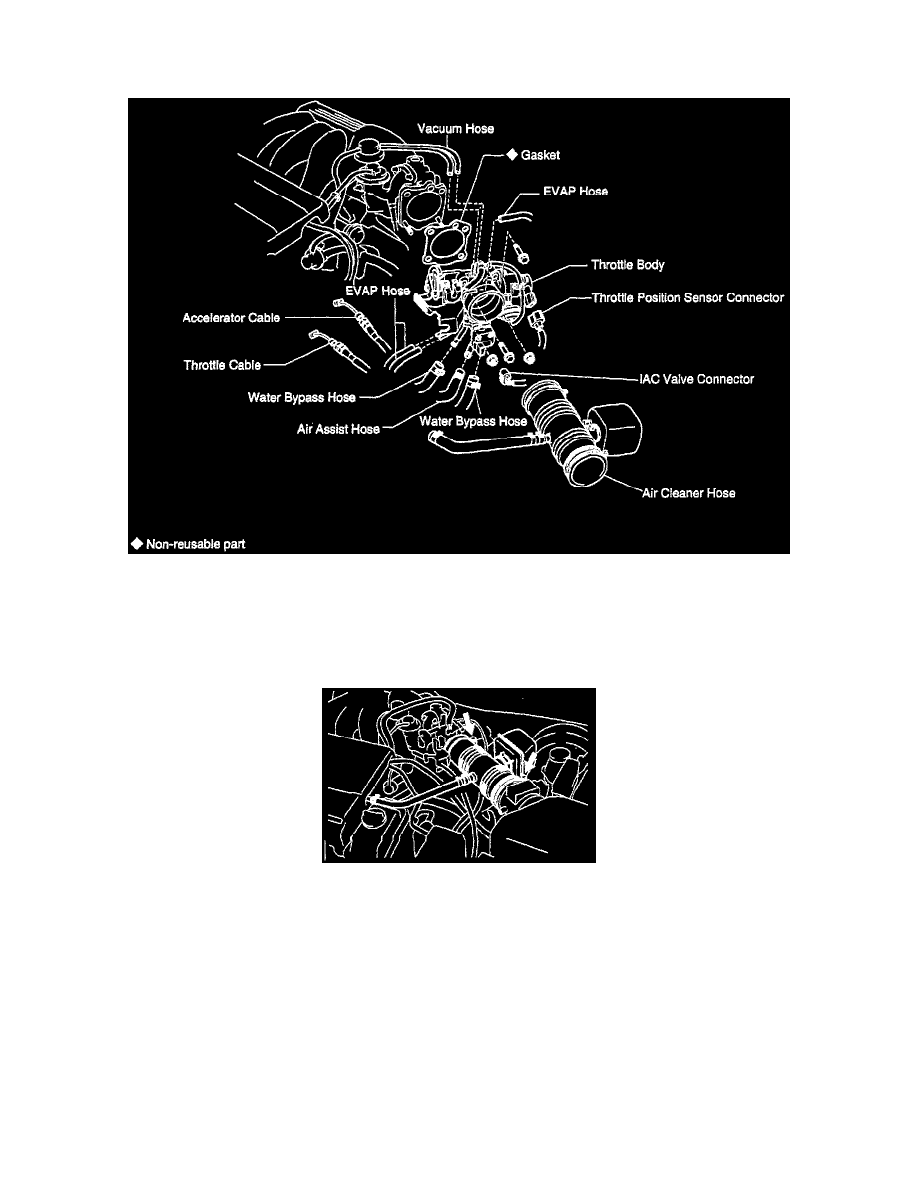

THROTTLE BODY REMOVAL
1. DRAIN ENGINE COOLANT
2. DISCONNECT ACCELERATOR CABLE
3. DISCONNECT THROTTLE CABLE
4. REMOVE AIR CLEANER HOSE
-
Disconnect the PCV hose.
-
Loosen the 2 hose clamps, and remove the air cleaner hose.
5. REMOVE THROTTLE BODY
-
Disconnect the throttle position sensor connector.
-
Disconnect the IAC valve connector.
-
Remove the hose clamp
-
Disconnect these vacuum hoses:
