Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
/Page-1115001.png)
Knock Sensor: Component Tests and General Diagnostics

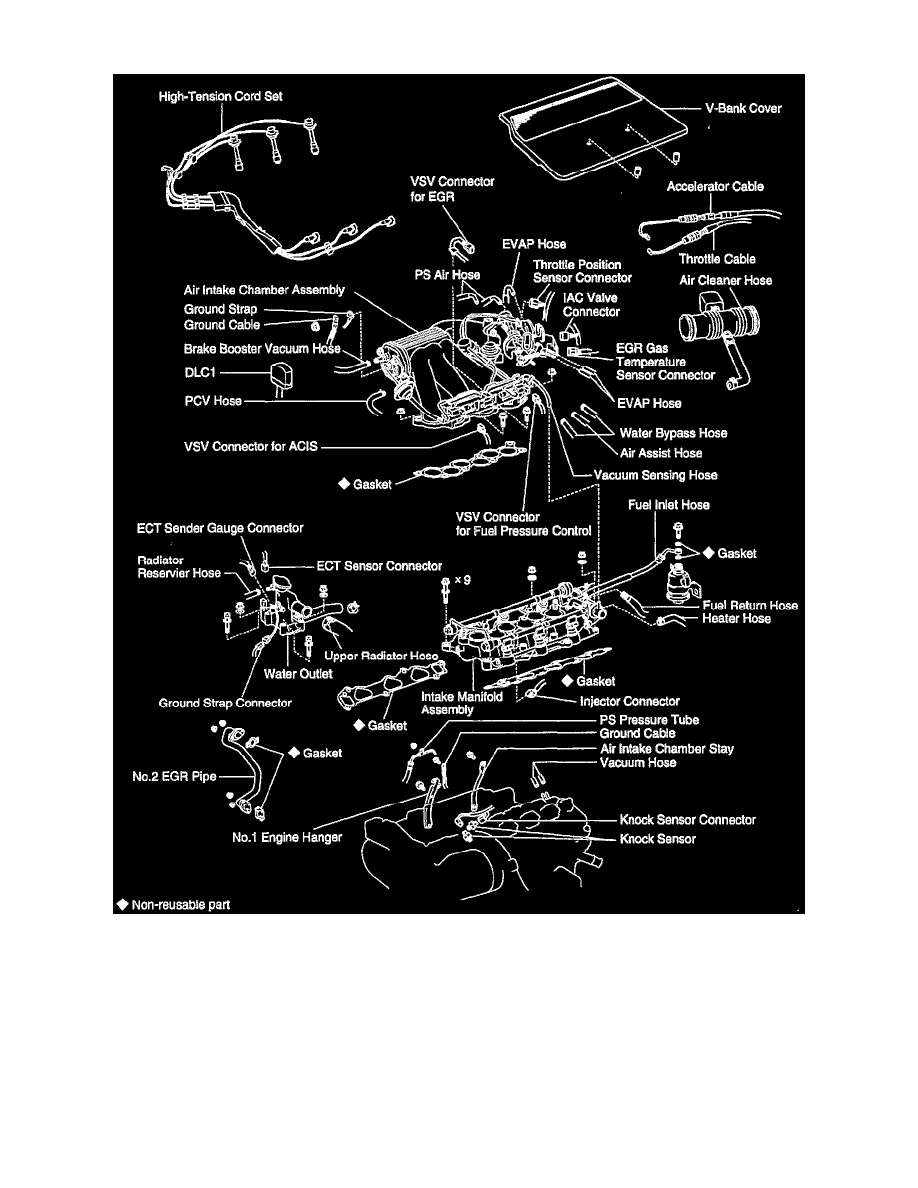

KNOCK SENSORS INSPECTION
1. REMOVE AIR CLEANER HOSE
2. REMOVE AIR INTAKE CHAMBER ASSEMBLY
3. DISCONNECT INJECTOR CONNECTORS
4. REMOVE INTAKE MANIFOLD ASSEMBLY
-
Disconnect the heater hose from the intake manifold.
