Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
/Page-1131001.png)
Overdrive Indicator Lamp: Testing and Inspection
O/D Main Switch & O/D OFF Indicator Light Circuit
CIRCUIT DESCRIPTION
The O/D main switch contacts go off when the switch is pushed in and come on when it is pushed out. In O/D main switch OFF position, the O/D
OFF indicator lights up, and the ECM prohibits shifting to overdrive.

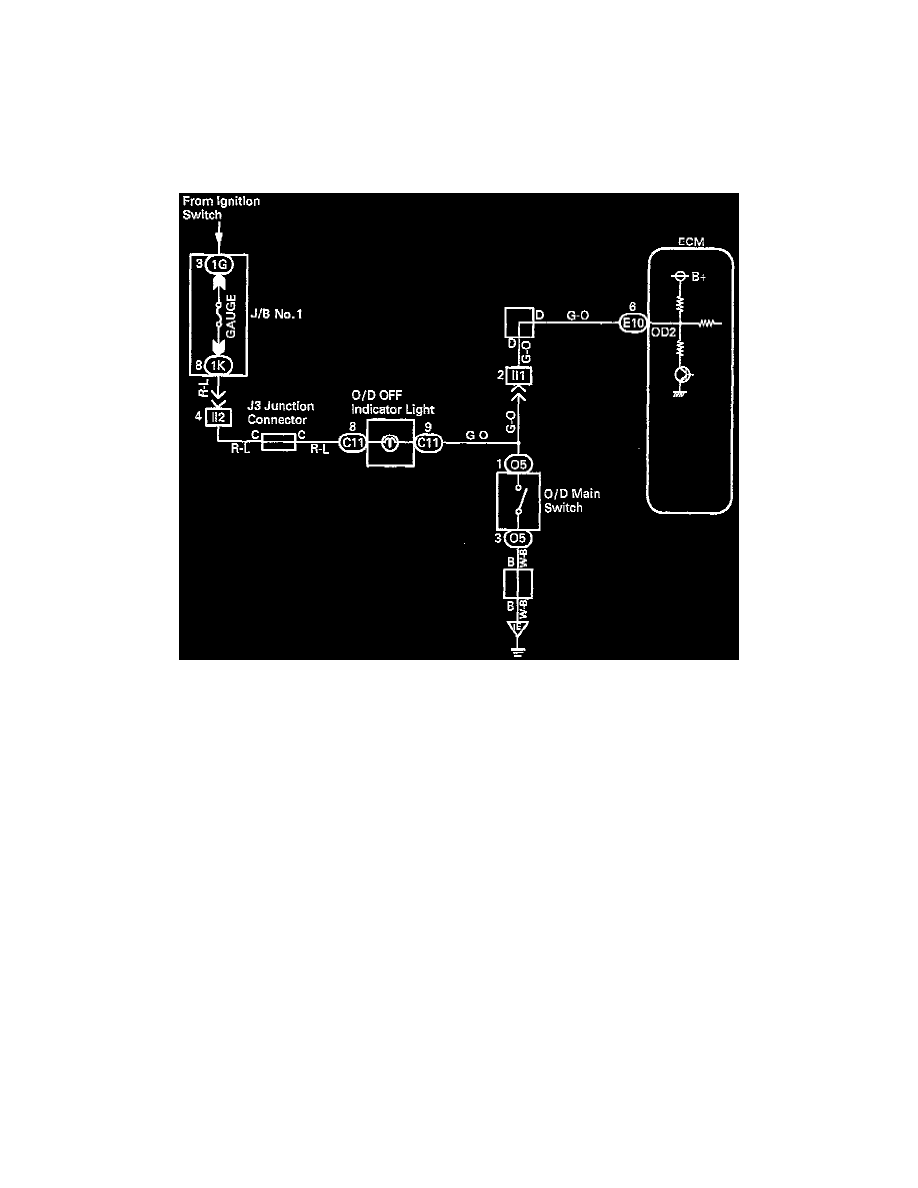

WIRING DIAGRAM
O/D Main Switch & O/D OFF Indicator Light Circuit
INSPECTION PROCEDURE
If O/D OFF indicator light does not light up.
