Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
/Page-1520001.png)
Radius Arm: Service and Repair

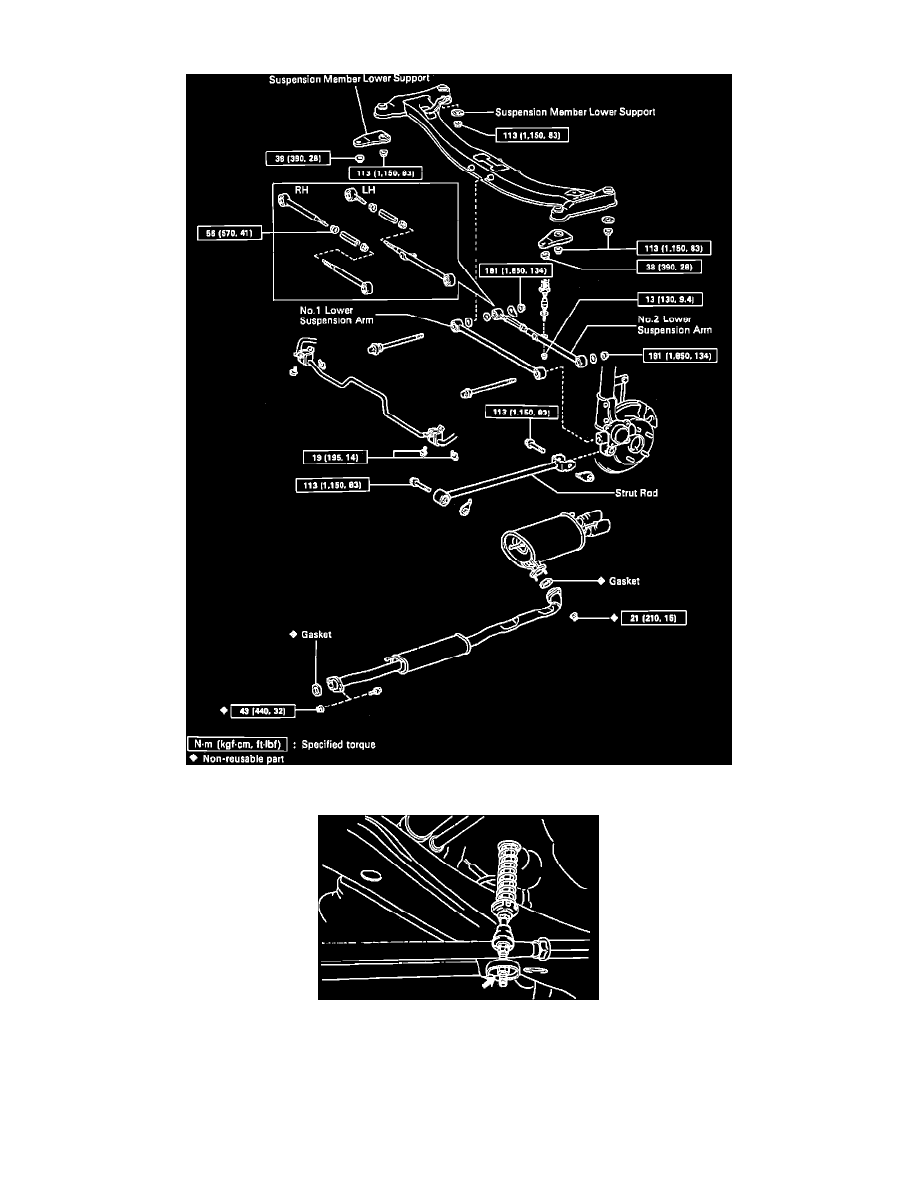

Fig. 15 Rear Suspension.
Fig. 11 LSPV Spring Removal
1.
Raise and support vehicle, then remove rear tires.
2.
Remove strut rods two attaching nuts and bolts, then strut rod, Fig. 15.
3.
On models with ABS, disconnect LSPV spring from lower arm Fig. 11.
4.
Remove No. 2 lower suspension arm attaching nuts, then suspension arm.
5.
Remove stabilizer bar bushing retainer, then exhaust center and tail pipe.
