Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
/Page-1289001.png)
Input Shaft: Service and Repair

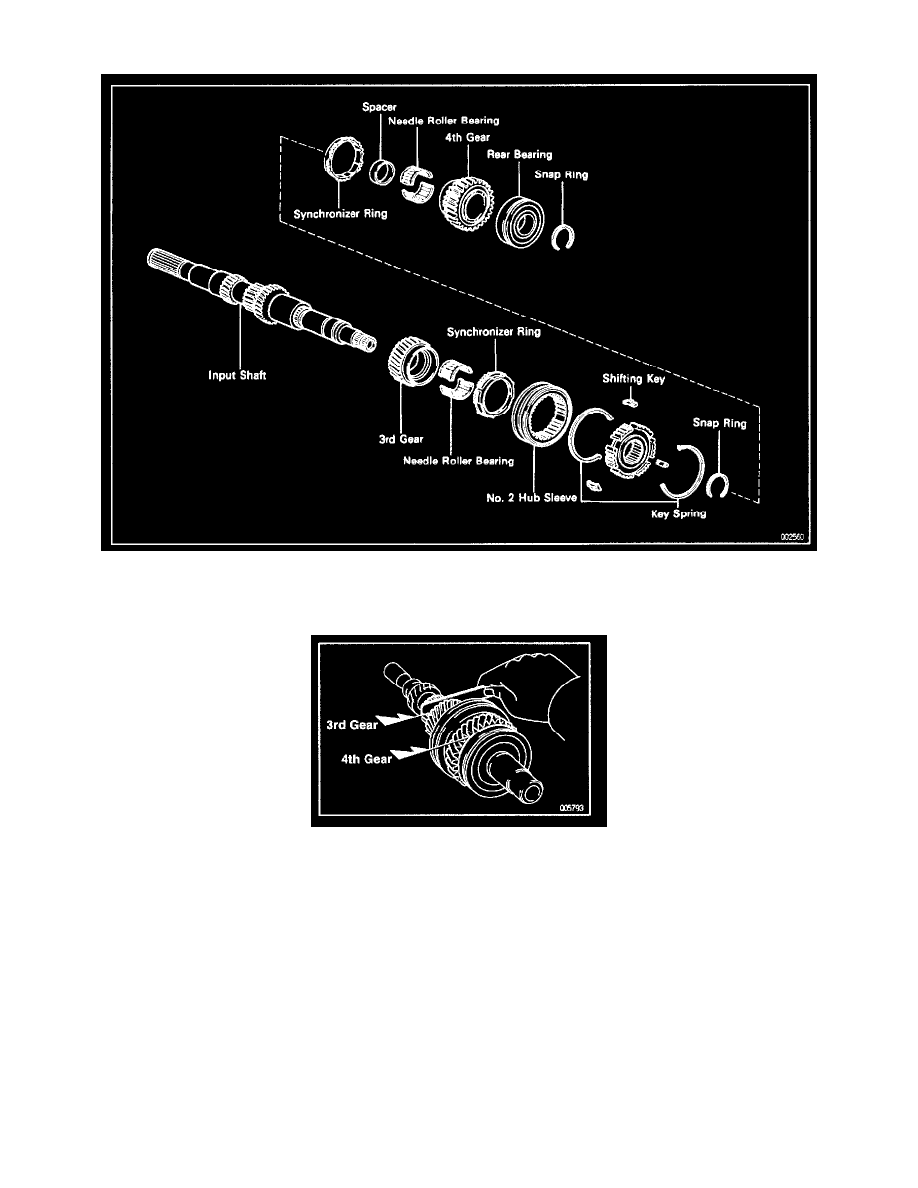

Components
INPUT SHAFT DISASSEMBLY
1. INSPECT 3RD AND 4TH GEAR THRUST CLEARANCE
Using a feeler gauge, measure the clearance.
Standard clearance:
3rd gear: 0.10 - 0.25 mm (0.0039 - 0.0098 in.)
4th gear: 0.20 - 0.45 mm (0.0079 - 0.0177 in.)
Maximum clearance:
3rd gear: 0.30 mm (0.0118 in.)
4th gear: 0.50 mm (0.0197 in.)
