Page 9

background image

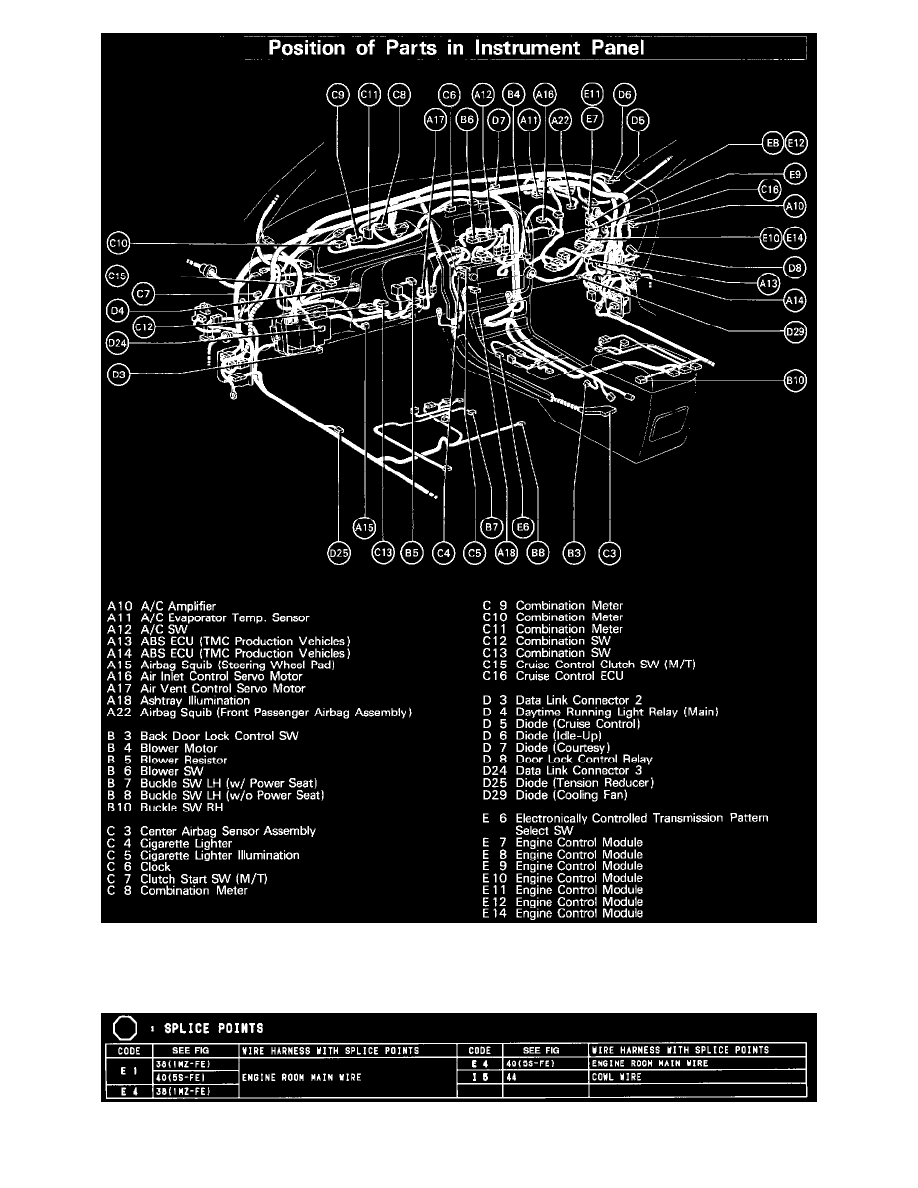

Position Of Parts In Instrument Panel (Part 1 Of 2) (Fig 32)

Splice Points

Splice Points

Wiper and Washer Systems
Wiper Motor / Component Information
Diagrams / Diagram Information and Instructions
Page 7589
