Camry Solara SLEV6 V6-3.0L (1MZ-FE) (2000)
/Page-931002.png)

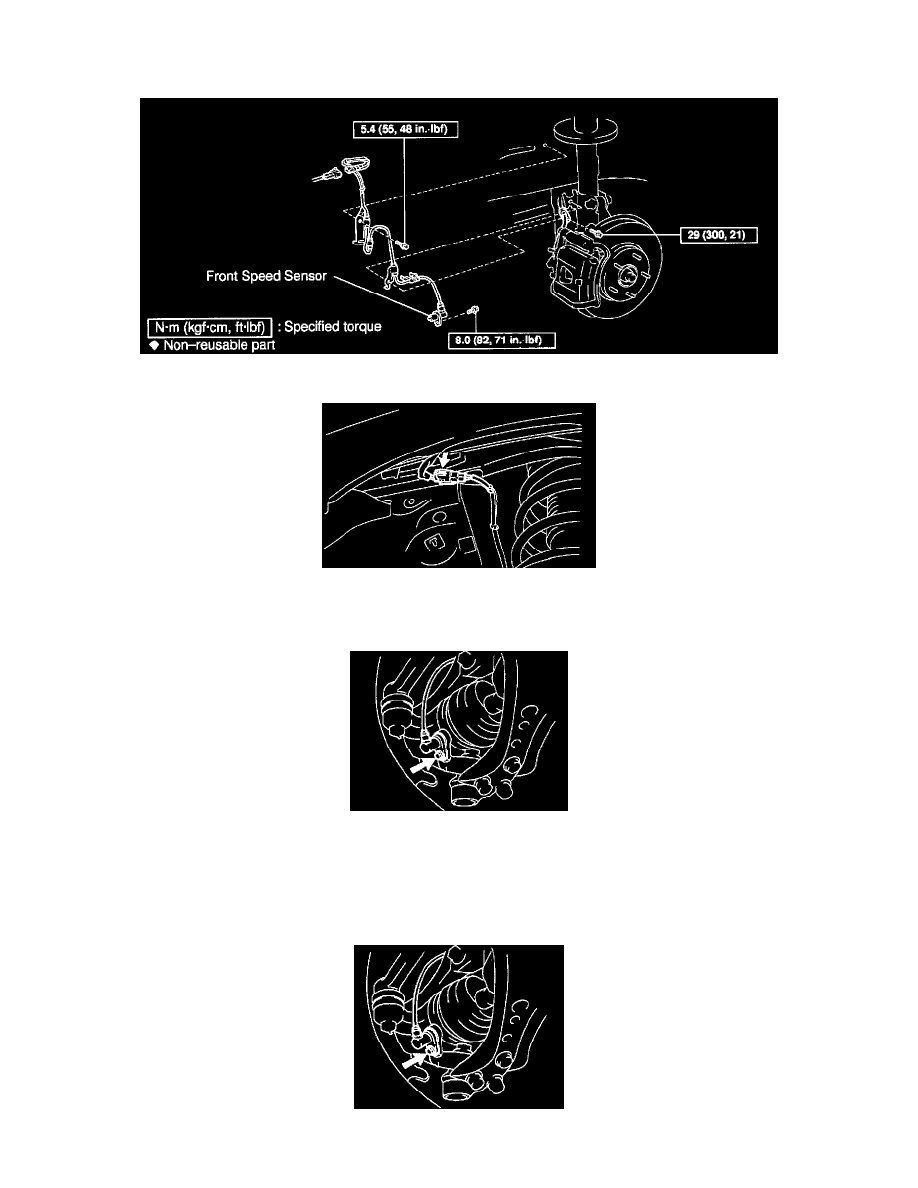

a. Install the speed sensor to the axle carrier.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)
b. Install the 2 sensor wire harness clamp bolts to the body and shock absorber.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
2. CONNECT SPEED SENSOR CONNECTOR
a. Connect the speed sensor connector, and put in the sensor wire harness with the grommet.
b. Install the quarter trim, seatback and seat cushion.
3. CHECK SPEED SENSOR SIGNAL
