Camry Wagon L4-132 2164cc 2.2L DOHC (5S-FE) (1995)
![background image](/toyota/camry_wagon/l4-132_2164cc_2.2l_dohc_(5s-fe)/Page-447005.png)

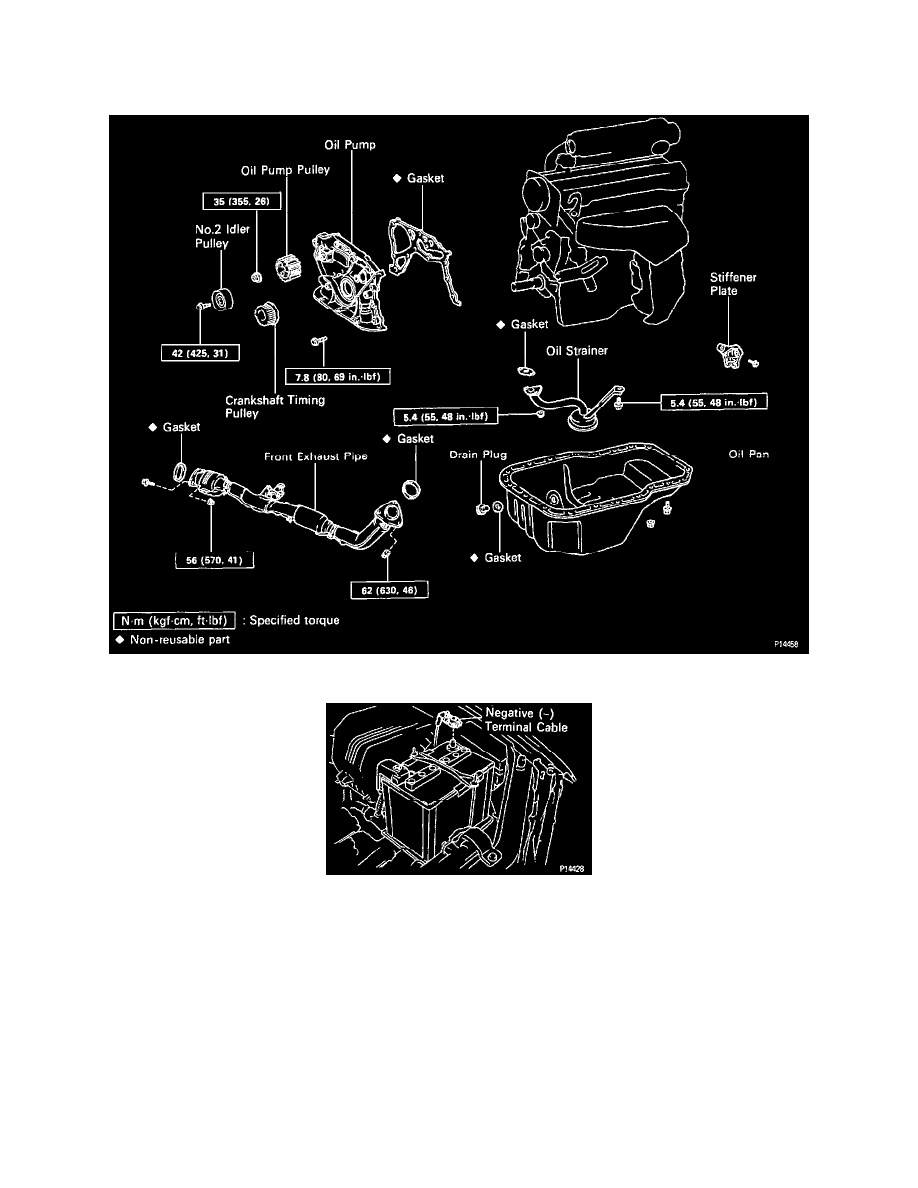

4. Install No.2 idler pulley.
a. Install the pulley with the bolt.
Torque: 42 Nm (31 ft lb)
NOTE: Use bolt 35 mm (1.38 in.) in length.
b. Check that the idler pulley moves smoothly.
5. Install timing belt.
6. Remove engine sling device.
7. Install a new gasket and the oil strainer with bolt and nuts.
Torque: 5.4 Nm (48 in lb)
8. Install oil pan.
9. Install the stiffener plate with the three bolts.
Torque: 37 Nm (27 ft lb)
