Camry Wagon L4-132 2164cc 2.2L DOHC (5S-FE) (1995)
![background image](/toyota/camry_wagon/l4-132_2164cc_2.2l_dohc_(5s-fe)/Page-1739003.png)
A/C Control Assembly (Push Type)

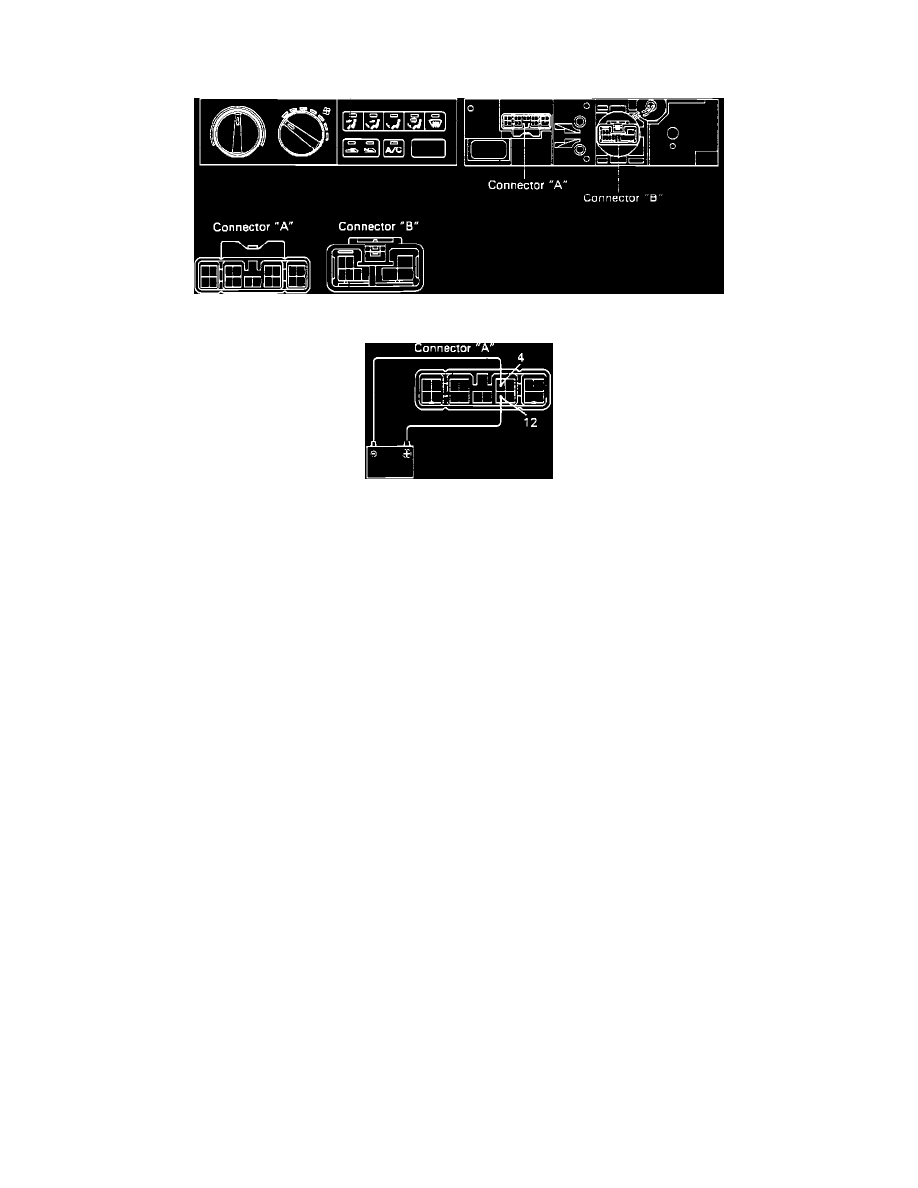

Indicator Dimming Testing
1.
Connect battery positive to terminal A-12 and negative to terminal A-1.
2.
Connect positive lead to terminal A-14 and check that mode indicator dims.
3.
If not as specified, replace A/C control assembly.
Mode Control Switches and Lamp Indicator
INSPECT MODE CONTROL SWITCH CONTINUITY
If continuity is not as specified, replace the A/C control assembly.
