Heater Core: Locations

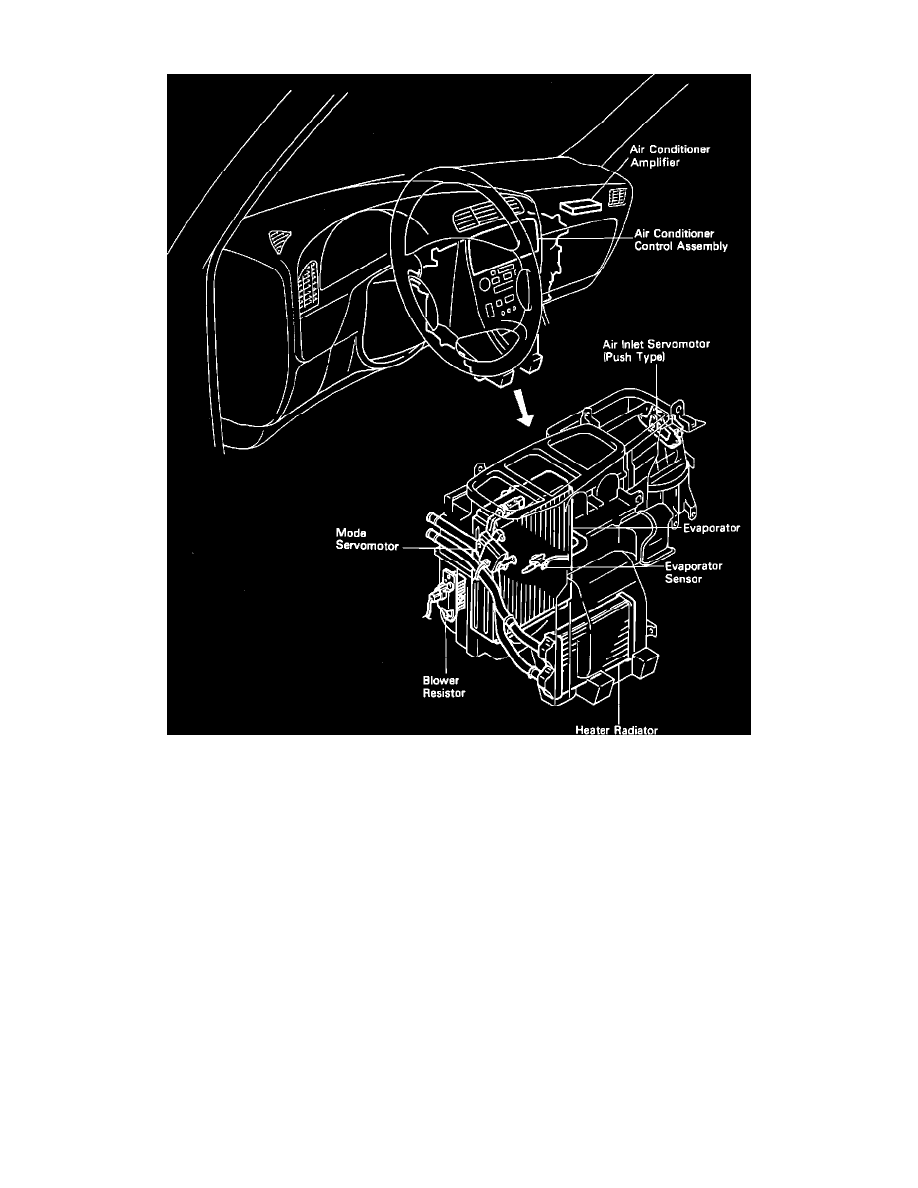

System Components (Interior)

Located in the front section of the HVAC underdash unit.
