Camry Wagon L4-132 2164cc 2.2L DOHC (5S-FE) (1995)
![background image](/toyota/camry_wagon/l4-132_2164cc_2.2l_dohc_(5s-fe)/Page-1591001.png)
Starter Motor: Testing and Inspection

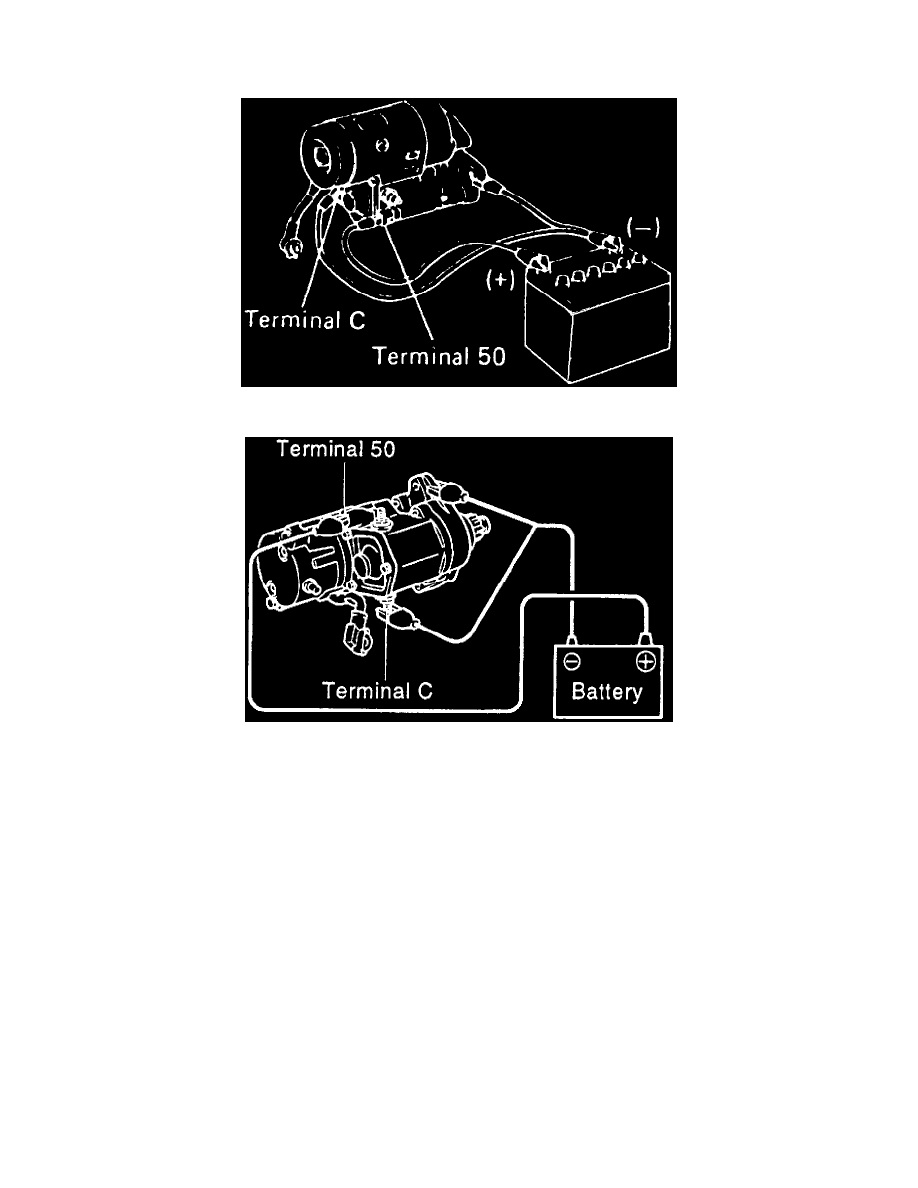

Hold-In Test
1. Install test equipment as outlined under Pull-In Test.
2. With pinion gear out, disconnect negative lead from terminal C.
3. Ensure pinion gear remains out.
4. If pinion gear returns inward, replace magnetic switch.
